SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]


id098008615300


Symbol Mark

ac5uub00000260

Removal Procedure

1.  Rough cut the 3 locations indicated by (A) shown in the figure.

2.  Drill the 98 locations indicated by (B) shown in he figure.

ac5uub00000367

3.  Remove the cabin side frame (outer) (side sill (outer)).

4.  Drill the 42 locations indicated by (C) shown in the figure.

5.  Drill the 3 locations indicated by (D) from the room side shown in the figure.

ac5uub00000409

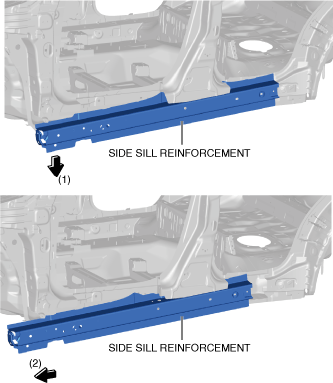

6.  Pull down the side sill reinforcement direction of arrow (1).

7.  Pull the side sill reinforcement direction of arrow (2) then remove it.
