FRONT FRAME (REAR) REMOVAL [PANEL REPLACEMENT]

id098008742500

Symbol Mark

ac5uub00000192

Removal Procedure

1.  Drill the 29 locations shown in the figure.

Note

•  When drilling, do not drill a hole all the way through or there could be a problem when installing the new part.

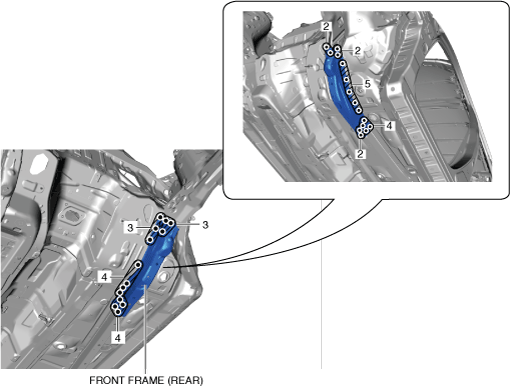

ac5uub00000193

2.  Remove the front frame (rear).
