REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

ac5wzb00000361

Removal Procedure

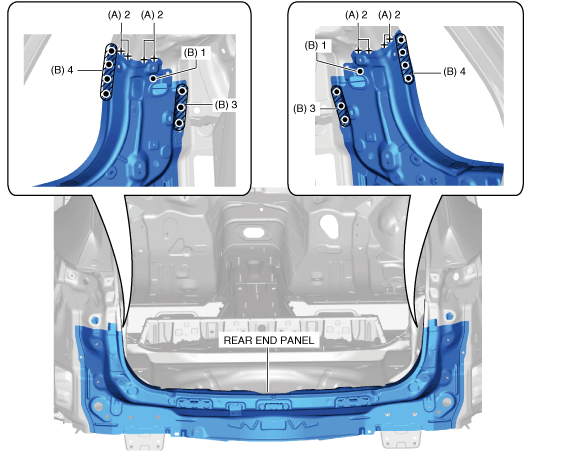

1.  Grind the 8 locations indicated by (A) from the trunk room side shown in the figure.

2.  Drill the 16 locations indicated by (B) from the trunk room side shown in the figure.

ac5wzb00000551

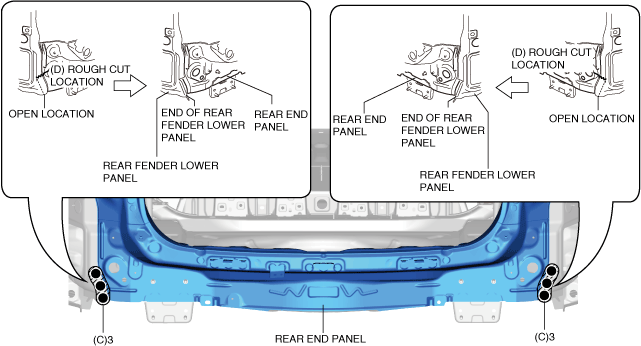

3.  Drill the 6 locations indicated by (C) shown in the figure.

4.  Rough cut the location indicated by (D) shown in the figure then open end of the rear fender lower panel.

ac5wzb00000362

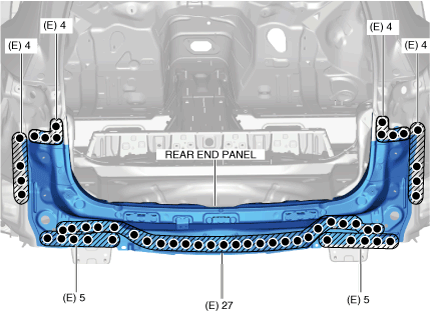

5.  Drill the 53 locations indicated by (E) shown in the figure.

ac5wzb00000520

6.  After lowering the rear end panel in the direction of arrow (1) shown in the figure while peel back from the stud bolt.

7.  Turn the rear end panel in the direction of arrow (2) shown in the figure, pull it out in the direction of arrow (3).
