D-PILLAR REINFORCEMENT (LOWER) REMOVAL [PANEL REPLACEMENT]

id098008829300

Symbol Mark

ac5uub00000166

Removal Procedure

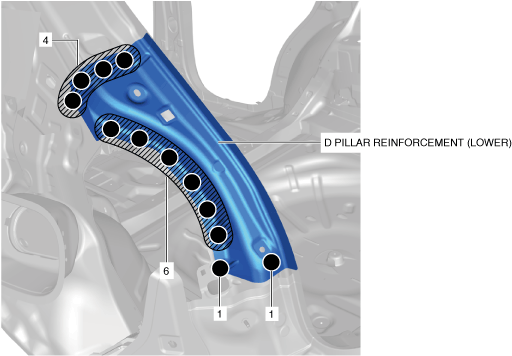

1.  Drill the 12 locations shown in the figure.

ac5uub00000167

2.  Remove the D pillar reinforcement (lower).
