SIDE MEMBER REMOVAL [PANEL REPLACEMENT]

id098008928100

Symbol Mark

ac5uub00000212

Removal Procedure

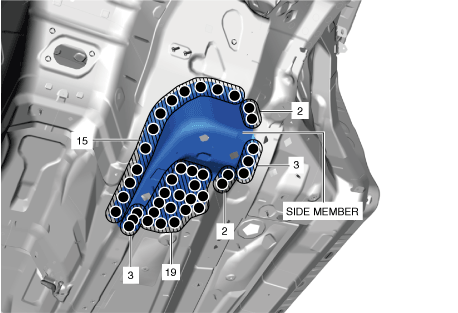

1.  Drill the 44 locations shown in the figure.

Note

•  When drilling, do not drill a hole all the way through or there could be a problem when installing the new part.

ac5wzb00000488

2.  Remove the side member.
