DAMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

id098009745700

• After repairing the body, attach the sound damping sheet to the location shown in the figure for noise insulation.

L.H.D.

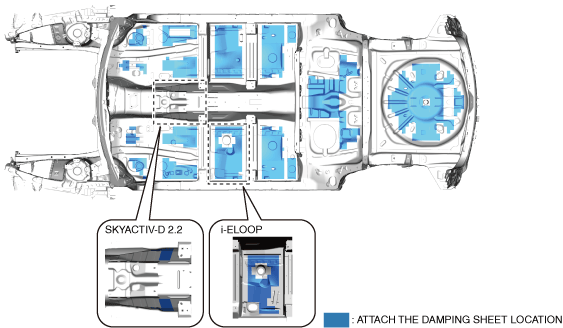

SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-D 2.2 (Except SKYACTIV-D 2.2 (European (L.H.D.) specs.)

ac5wzb00000352

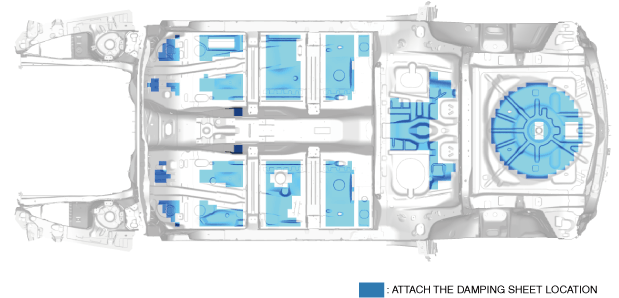

SKYACTIV-D 2.2 (European (L.H.D.) specs.)

ac5wzb00000540

R.H.D.

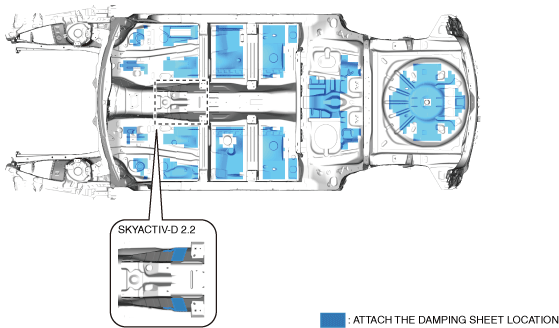

SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-D 2.2 (Except SKYACTIV-D 2.2 (European (U.K.) specs.)

ac5wzb00000353

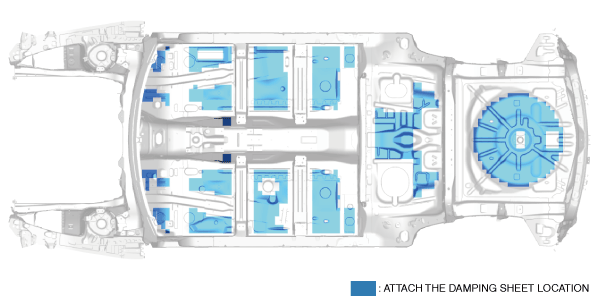

SKYACTIV-D 2.2 (European (U.K.) specs.)

ac5wzb00000541
