DETERMINING OPEN CIRCUIT LOCATION (CAN-BUS No.1) [TYPE-B (L.H.D.)]

id100270001700

Caution

• Perform the following malfunction diagnosis only when it is diagnosed with a open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-B (L.H.D.)]. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-B (L.H.D.)].)

• If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

• When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1. Verify the CAN system-related module DTCs and the module displayed in red or blue on the M-MDS screen.

2. Apply the communication error DTC and the module displayed in red or blue to the DTC output pattern and malfunctioning location, and select the possible cause for the diagnostic result and the reference for the inspection item. (See DTC Output Pattern And Malfunctioning Location)

Note

• The open circuit location can be determined by the DTC indicated in the DTC output pattern and malfunctioning location chart. DTCs not listed in the chart are not used for the determination of the open circuit location. (See DTC Output Pattern And Malfunctioning Location.)

• The module may be displayed in red or blue on the M-MDS screen even if there is no malfunction depending on the vehicle specification.

3. Inspect the possible cause and inspection item of the applicable malfunctioning part.

DTC Output Pattern And Malfunctioning Location

Cross (×): Control error-related DTC

M-MDS display	DTC	DTC output pattern and malfunctioning location
DTC output module	DTC	DTC output pattern and malfunctioning location
PCM	U0101:00					×
	U0104:00			×
	U010E:00															×
	U0121:00		×
	U0131:00																									×
	U0140:00						×
	U0151:00																												×
	U0155:00																													×		×
	U0214:00																										×
	U023A:00																							×
	U029D:00												×
DSC HU/CM	U0100:00	×
	U0101:00					×
	U0104:00			×
	U0114:00																		×
	U0128:00																	×
	U0131:00																									×
	U0151:00																												×
	U0155:00																													×		×
	U023A:00																							×
Radar unit	U0100:00	×
	U0101:00					×
	U0121:00		×
	U0131:00																									×
	U0140:00						×
	U0151:00																												×
	U0155:00																													×		×
	U0214:00																										×
	U023A:00																							×
TCM	U0100:00	×			×
	U0121:00		×		×
	U0131:00																									×
	U0155:00																													×		×
	U0214:00																										×
Front body control module (FBCM)	U0100:00	×			×
	U0101:00					×
	U0121:00		×		×
	U0151:00																												×
	U0155:00																													×		×
	U0214:00																										×
	U023A:00																							×
Adaptive front lighting system (AFS) control module	U0100:00	×			×			×
	U0131:00																									×
	U0140:00						×	×
	U0155:00																													×		×
Auto leveling control module	U0100:00	×			×			×
	U0140:00						×	×
	U0155:00																													×		×
Adaptive LED headlights control module	U0100:00	×			×			×
	U0121:00		×		×			×
	U0131:00																									×
	U0140:00						×	×
	U0155:00																													×		×
	U0214:00																										×
	U023A:00																							×
Power liftgate (PLG) control module	U0100:00	×			×			×		×
	U0101:00					×		×		×
	U0155:00																													×		×
	U0156:00
	U0214:00																										×
Dosing control unit	U0100:00	×			×			×		×		×
Electric parking brake control module	U0100:00	×			×			×		×		×					×
	U0101:00					×		×		×		×					×
	U0121:00		×		×			×		×		×					×
	U0151:00																												×
	U0155:00																													×		×
4WD control module	U0100:00	×			×			×		×		×					×
	U0101:00					×		×		×		×					×
	U0121:00		×		×			×		×		×					×
DC-DC converter (i-ELOOP)	U0100:00	×			×			×		×		×					×
	U0151:00																												×
	U0155:00																													×		×
Position memory control module	U0100:00	×			×			×		×		×					×				×
	U0101:00					×		×		×		×					×				×
	U0151:00																												×
	U0155:00																													×		×
	U0214:00																										×
Forward sensing camera (FSC)	U0100:00	×			×			×		×		×					×				×		×
	U0104:00			×	×			×		×		×					×				×		×
	U0121:00		×		×			×		×		×					×				×		×
	U0131:00																									×
	U0140:00						×	×		×		×					×				×		×
	U0151:00																												×
	U0155:00																												×	×		×
	U0156:00
	U0182:00								×	×		×					×				×		×
	U0214:00																										×
EPS control module	U0100:00	×			×			×		×		×					×				×		×		×
	U0121:00		×		×			×		×		×					×				×		×		×
	U0126:00																												×
	U0155:00																													×		×
	U0214:00																										×
	U023A:00																							×	×
Start stop unit	U0100:00	×			×			×		×		×					×				×		×		×
	U0101:00					×		×		×		×					×				×		×		×
	U0121:00		×		×			×		×		×					×				×		×		×
	U0121:87		×		×			×		×		×					×				×		×		×
	U0131:00																									×
	U0140:00						×	×		×		×					×				×		×		×
	U0146:00																													×		×
	U0151:00																												×
	U0155:00																													×		×
SAS control module	U0100:00	×			×			×		×		×					×				×		×		×			×
SAS control module	U0155:00																													×		×
Connectivity master unit (CMU)	U0101:00					×		×		×		×					×				×		×		×			×
	U0131:00																									×		×
	U0146:00
	U0151:00																												×
	U0155:00																													×		×
	U0198:02
	U213C:00		×		×			×		×		×					×				×		×		×			×
	U213E:00	×			×			×		×		×					×				×		×		×			×
Active driving display	U0100:00	×			×			×		×		×					×				×		×		×			×
	U0104:00			×	×			×		×		×					×				×		×		×			×
	U0155:00																															×
	U0156:00
	U023A:00																							×	×			×
Instrument cluster	U0100:00	×			×			×		×		×					×				×		×		×			×
	U0101:00					×		×		×		×					×				×		×		×			×
	U0104:00			×	×			×		×		×					×				×		×		×			×
	U0114:00																		×		×		×		×			×
	U0121:00		×		×			×		×		×					×				×		×		×			×
	U0128:00
	U0131:00																									×		×
	U0140:00						×	×		×		×					×				×		×		×			×
	U0151:00																												×
	U0156:00
	U0158:00																														×
	U0182:00								×	×		×					×				×		×		×			×
	U0214:00																										×	×
	U0235:00																							×	×			×
	U023A:00																							×	×			×
	U0298:00																			×	×		×		×			×
Telematics communication unit	U0140:00						×	×		×		×					×				×		×		×			×					×
	U0151:00																												×				×
	U0164:00
	U213C:00		×		×			×		×		×					×				×		×		×			×
Gateway unit (GWU)	U0151:00																												×
	U0336:82																												×
	U2132:00
M-MDS display module		Module displayed in red or blue
PCM		×			×			×		×		×					×				×		×		×			×					×
DSC HU/CM			×		×			×		×		×					×				×		×		×			×					×
Radar unit				×	×			×		×		×					×				×		×		×			×					×
TCM						×		×		×		×					×				×		×		×			×					×
Front body control module (FBCM)							×	×		×		×					×				×		×		×			×					×
Adaptive front lighting system (AFS) control module/Auto leveling control module / adaptive LED headlights control module									×	×		×					×				×		×		×			×					×
Power liftgate (PLG) control module											×	×					×				×		×		×			×					×
NOx sensor No.1													×				×				×		×		×			×					×
NOx sensor No.2														×			×				×		×		×			×					×
PM sensor															×		×				×		×		×			×					×
Dosing control unit																×	×				×		×		×			×					×
Electric parking brake control module																		×			×		×		×			×					×
4WD control module																			×		×		×		×			×					×
DC-DC converter (i-ELOOP)																				×	×		×		×			×					×
Position memory control module																						×	×		×			×					×
Forward sensing camera (FSC)																								×	×			×					×
EPS control module																										×		×					×
Start stop unit																											×	×					×
SAS control module																													×				×
Active driving display																														×	×		×
Instrument cluster																														×		×	×
Gateway unit (GWU)																																	×
Diagnostic result
Possible cause and inspection item		A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V	W	X	Y	Z	AA	AB	AC	AD	AE	AF

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• PCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between PCM and connector C-53

• Connector C-53 malfunction

• PCM malfunction

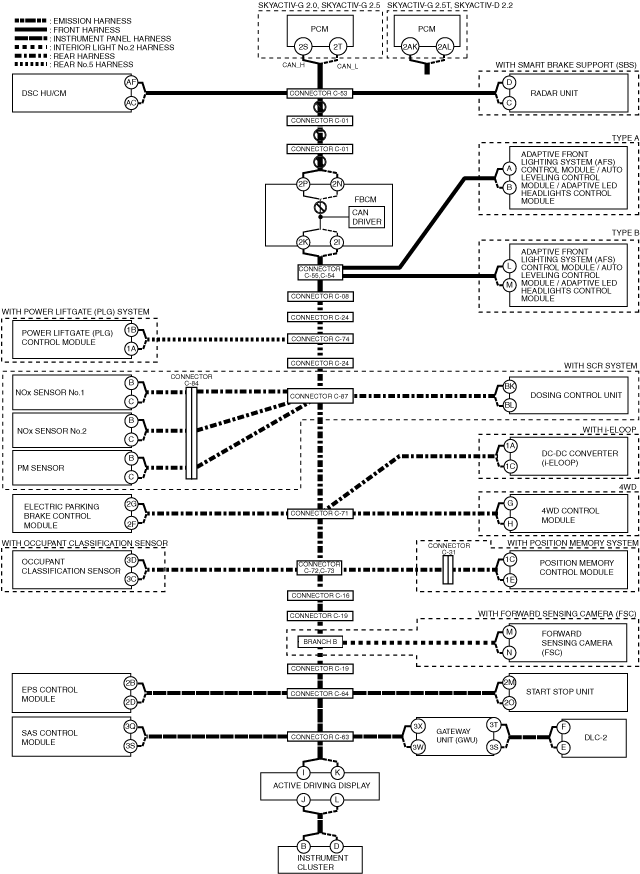

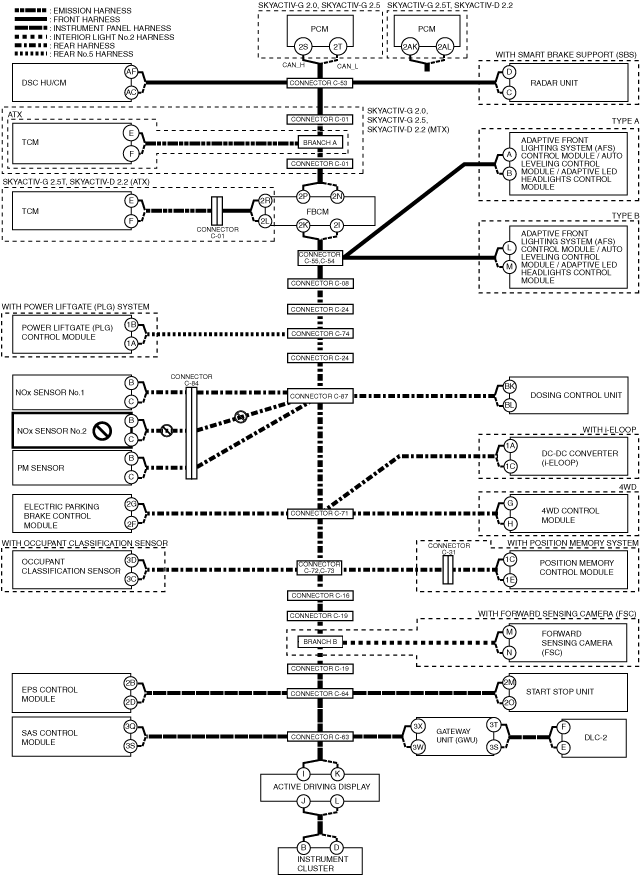

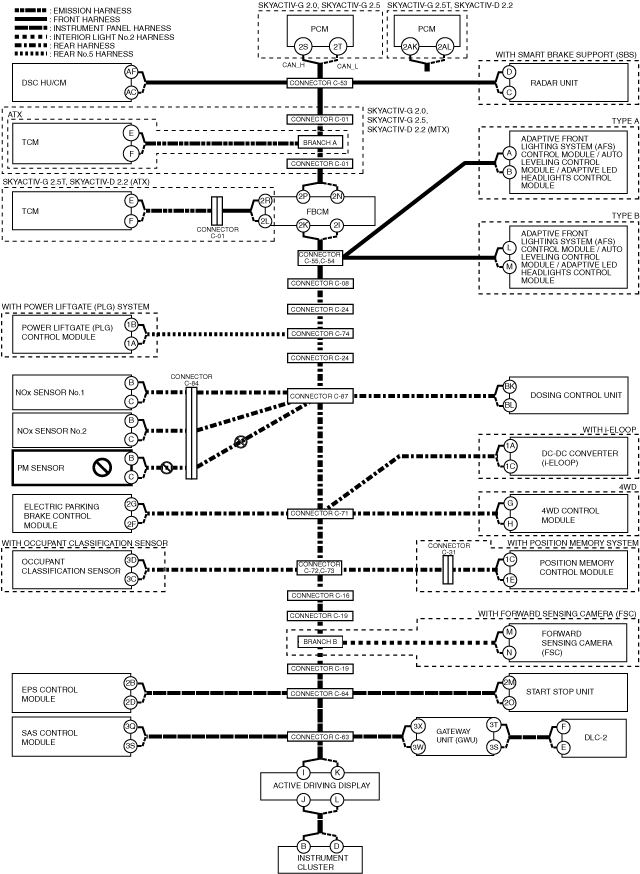

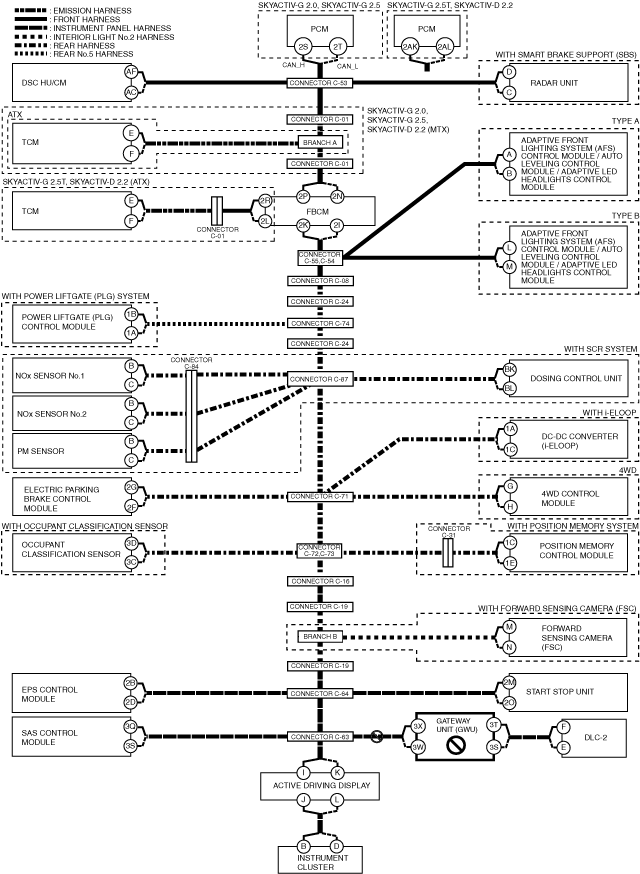

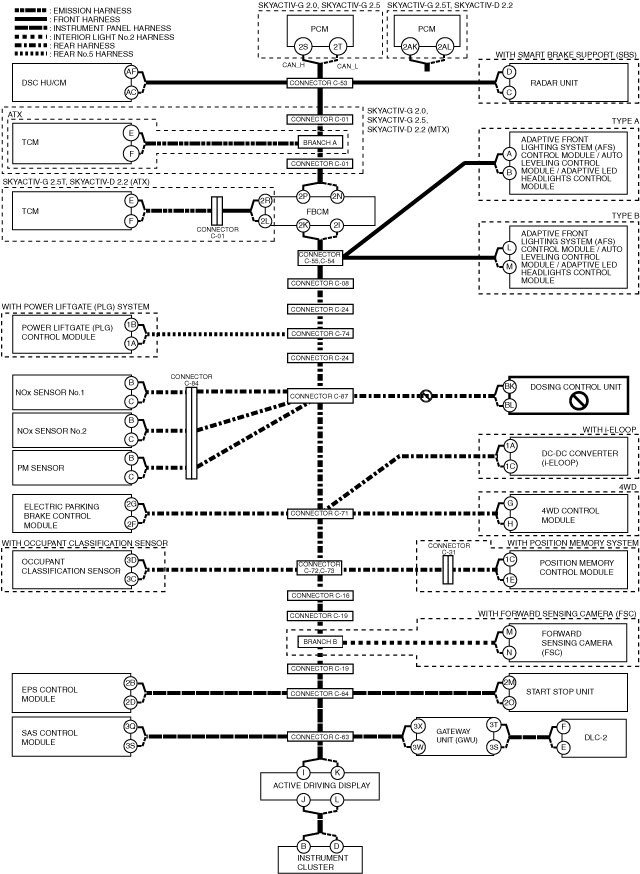

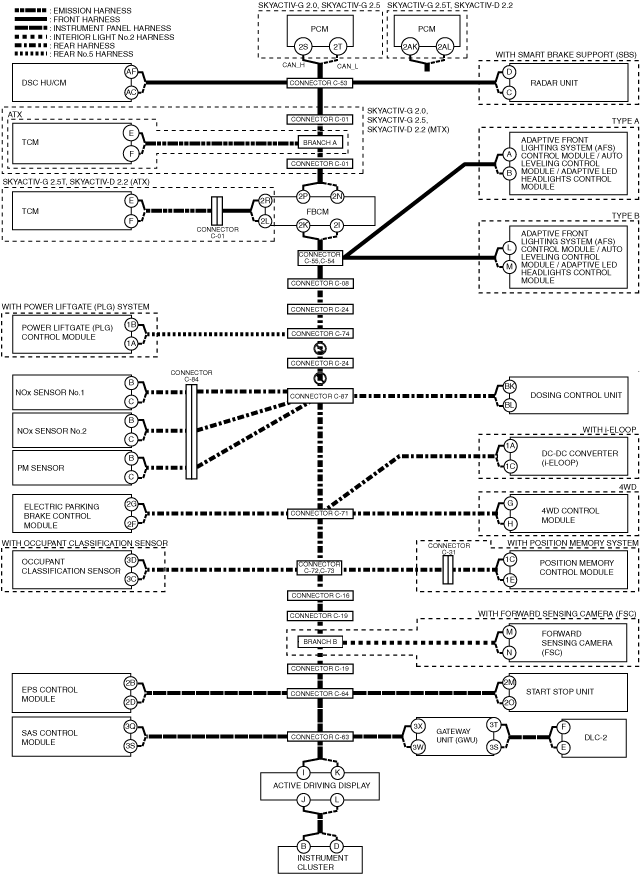

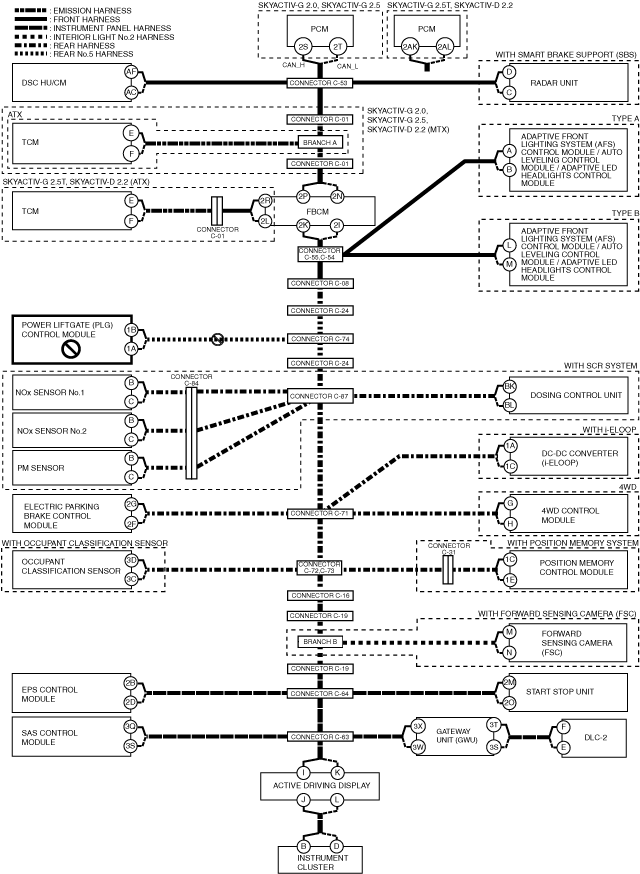

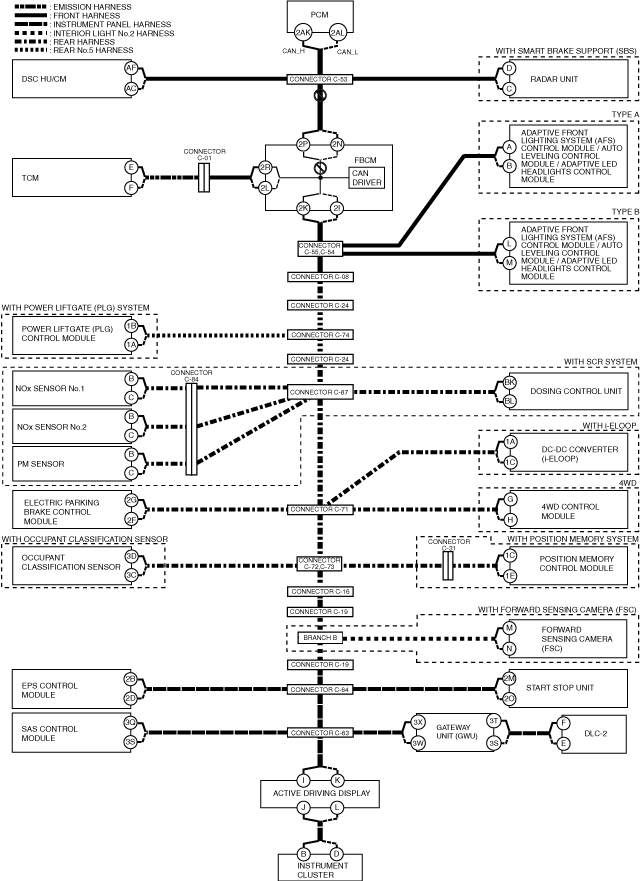

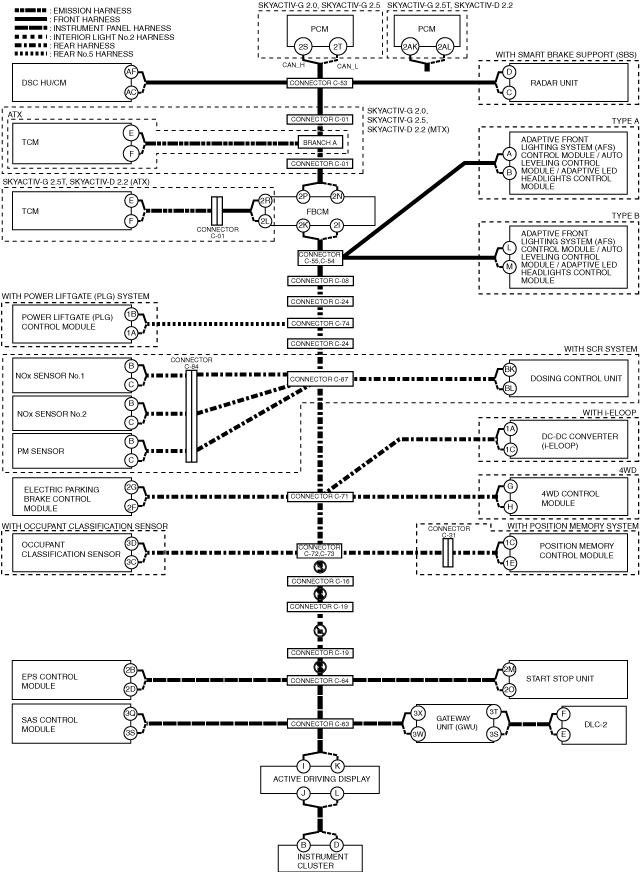

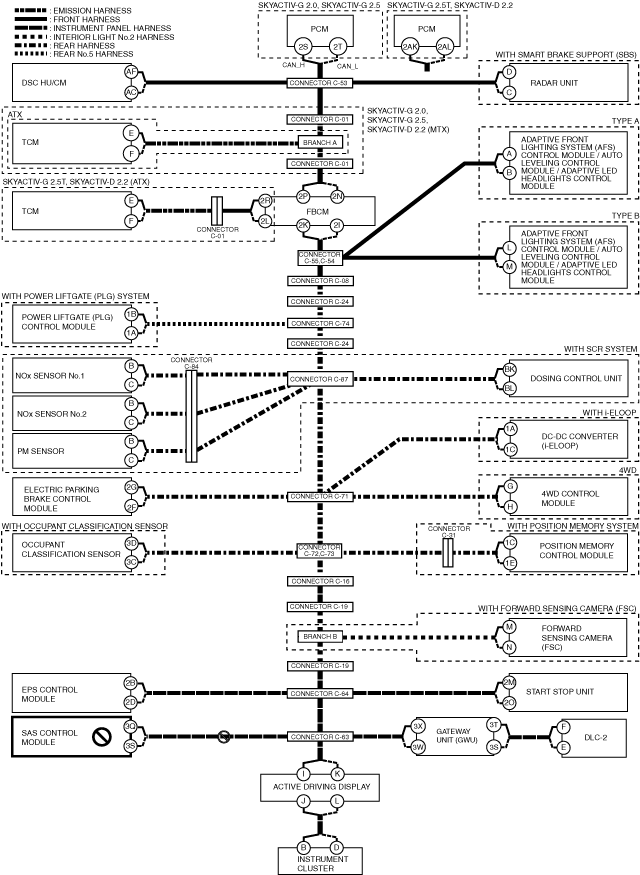

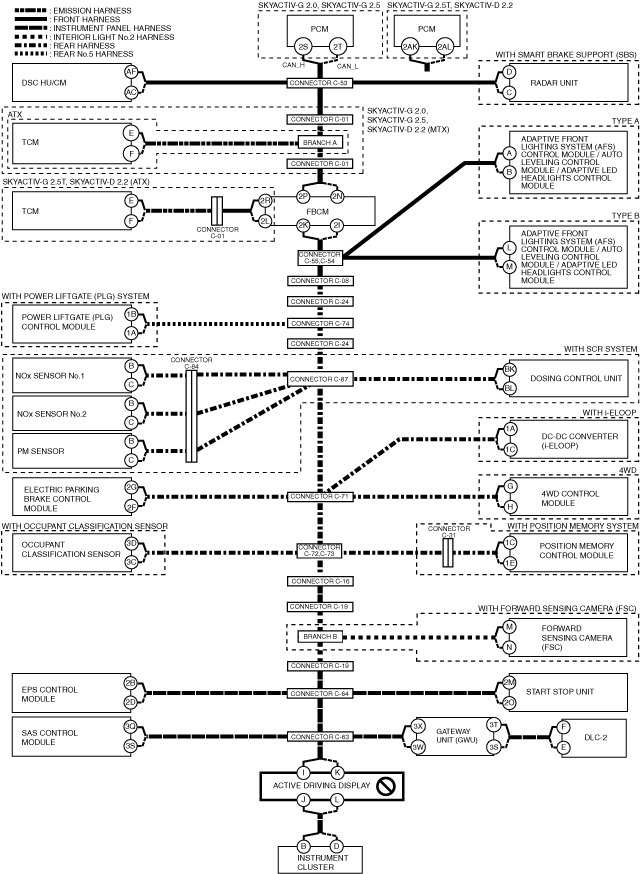

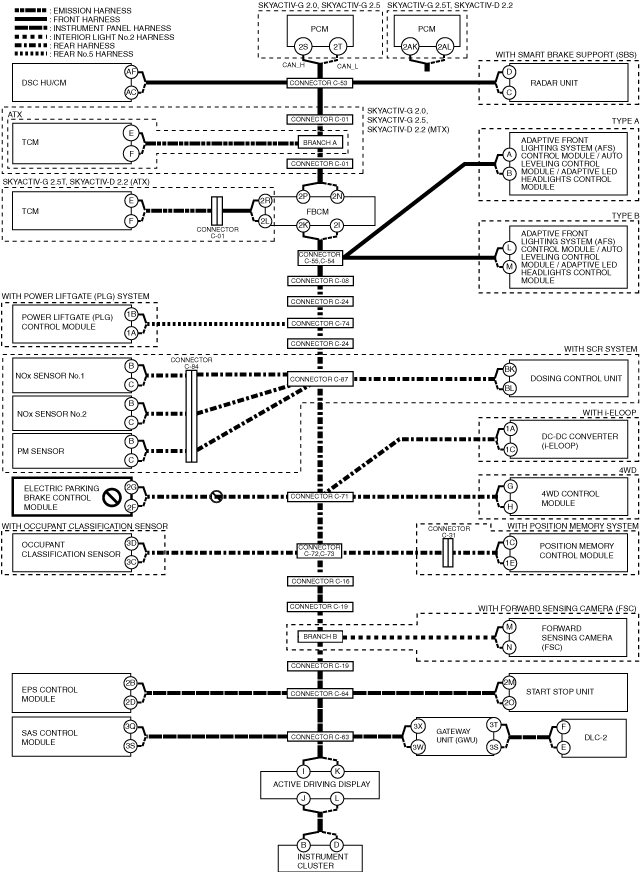

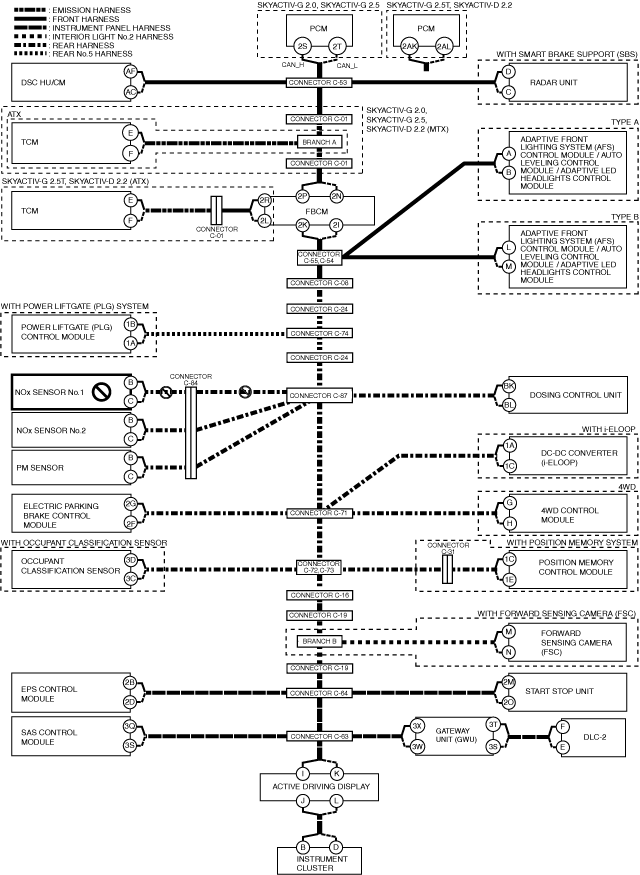

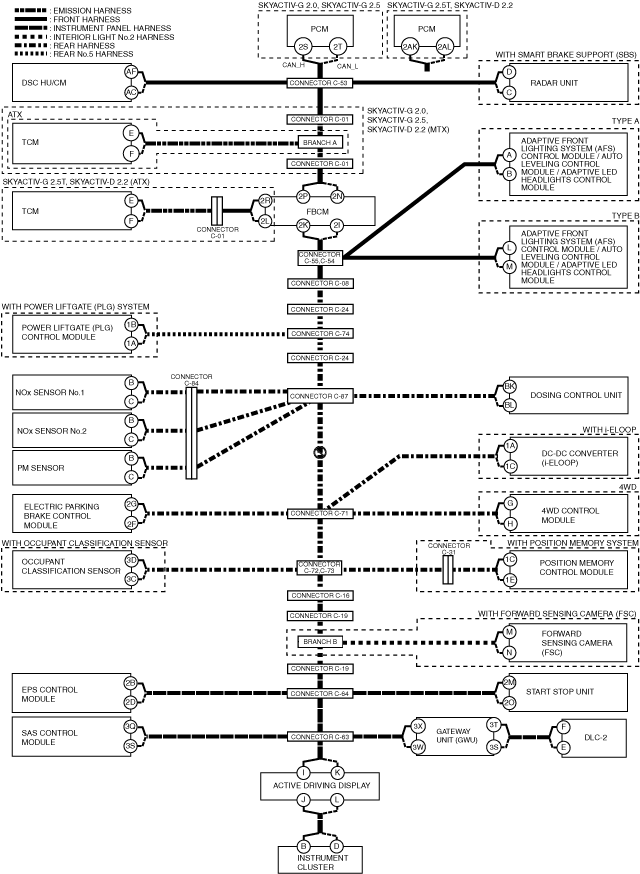

System wiring diagram

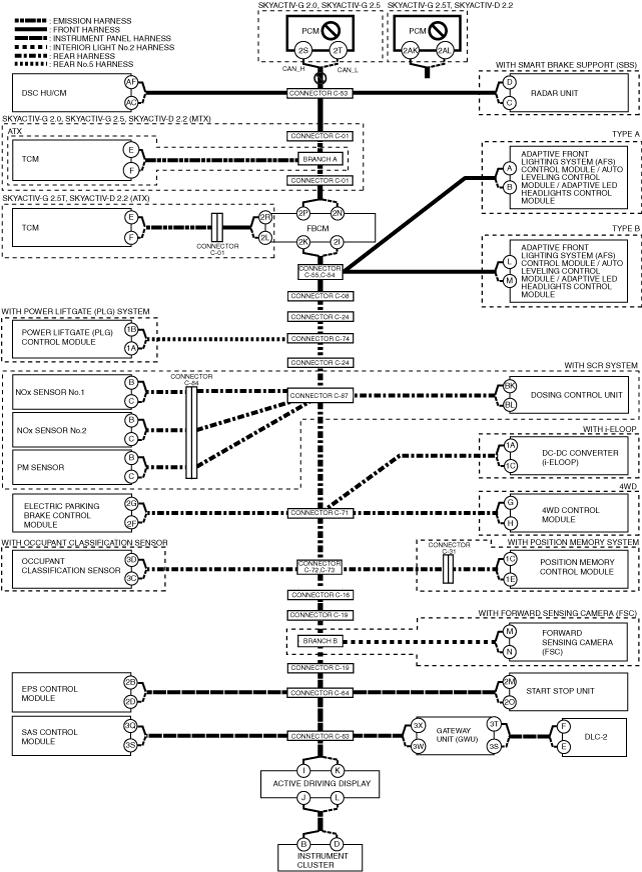

ac5wzw00014695

Inspection item

• PCM power supply voltage-related wiring harness and fuse

• PCM body ground related wiring harness

• PCM connector

• Connector C-53

• Wiring harness between PCM terminal 2S and connector C-53 (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

• Wiring harness between PCM terminal 2T and connector C-53 (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

• Wiring harness between PCM terminal 2AK and connector C-53 (SKYACTIV-G 2.5T, SKYACTIV-D 2.2)

• Wiring harness between PCM terminal 2AL and connector C-53 (SKYACTIV-G 2.5T, SKYACTIV-D 2.2)

• PCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• DSC HU/CM power supply voltage or body ground malfunction

• Open circuit in wiring harness between DSC HU/CM and connector C-53

• Connector C-53 malfunction

• DSC HU/CM malfunction

System wiring diagram

ac5wzw00014696

Inspection item

• DSC HU/CM power supply voltage-related wiring harness and fuse

• DSC HU/CM body ground related wiring harness

• DSC HU/CM connector

• Connector C-53

• Wiring harness between DSC HU/CM terminal AF and connector C-53

• Wiring harness between DSC HU/CM terminal AC and connector C-53

• DSC HU/CM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Radar unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between radar unit and connector C-53

• Connector C-53 malfunction

• Radar unit malfunction

System wiring diagram

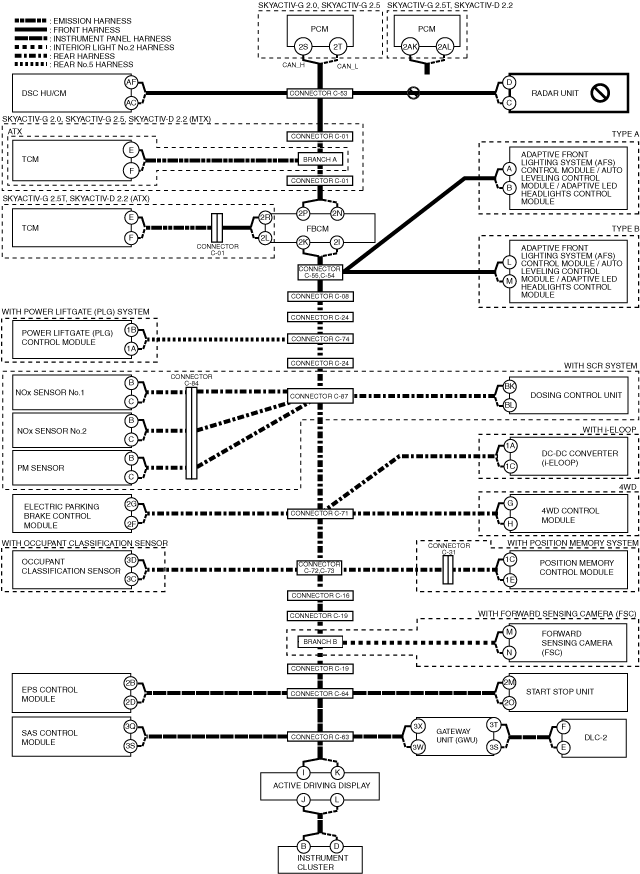

ac5wzw00014697

Inspection item

• Radar unit power supply voltage-related wiring harness and fuse

• Radar unit body ground related wiring harness

• Radar unit connector

• Connector C-53

• Wiring harness between radar unit terminal D and connector C-53

• Wiring harness between radar unit terminal C and connector C-53

• Radar unit

SKYACTIV-G 2.0 (ATX), SKYACTIV-G 2.5

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-53 and connector C-01

• Open circuit in wiring harness between connector C-01 and branch A

• Connector C-53 malfunction

• Connector C-01 malfunction

System wiring diagram

ac5wzw00014698

Inspection item

• Connector C-53

• Connector C-01

• Wiring harness between connector C-53 and connector C-01

• Wiring harness between connector C-01 and branch A

SKYACTIV-G 2.0 (MTX) SKYACTIV-D 2.2 (MTX)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-53 and connector C-01

• Open circuit in wiring harness between connector C-01 and connector C-01

• Open circuit in wiring harness between front body control module (FBCM) and connector C-01

• Connector C-53 malfunction

• Connector C-01 malfunction

• CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

ac5wzw00014699

Inspection item

• Front body control module (FBCM) connector

• Connector C-53

• Connector C-01

• Wiring harness between connector C-53 and connector C-01

• Wiring harness between connector C-01 and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2P and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2N and connector C-01

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between front body control module (FBCM) and connector C-53

• Connector C-53 malfunction

• CAN circuit in front body control module (FBCM) malfunction

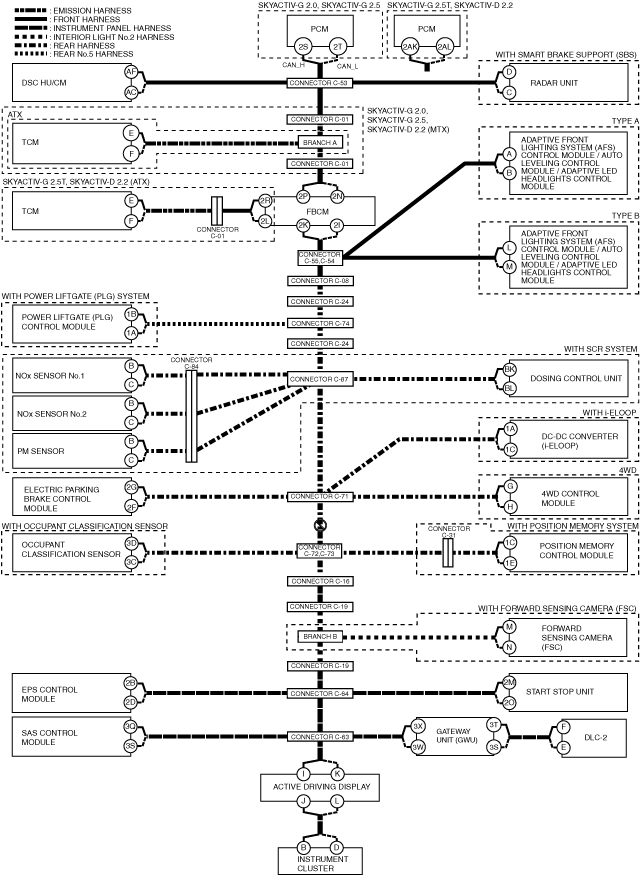

System wiring diagram

ac5wzw00014700

Inspection item

• Front body control module (FBCM) connector

• Connector C-53

• Wiring harness between front body control module (FBCM) terminal 2P and connector C-53

• Wiring harness between front body control module (FBCM) terminal 2N and connector C-53

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

SKYACTIV-G 2.0, SKYACTIV-G 2.5

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• TCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between TCM and branch A

• TCM malfunction

System wiring diagram

ac5wzw00014701

Inspection item

• TCM power supply voltage-related wiring harness and fuse

• TCM body ground related wiring harness

• TCM connector

• Wiring harness between TCM terminal E and branch A

• Wiring harness between TCM terminal F and branch A

• TCM

SKYACTIV-G 2.5T, SKYACTIV-D 2.2

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• TCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between TCM and connector C-01

• Open circuit in wiring harness between connector C-01 and front body control module (FBCM)

• Connector C-01 malfunction

• TCM malfunction

• CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

ac5wzw00014702

Inspection item

• TCM power supply voltage-related wiring harness and fuse

• TCM body ground related wiring harness

• TCM connector

• Connector C-01

• Front body control module (FBCM) connector

• Wiring harness between TCM terminal E and connector C-01

• Wiring harness between TCM terminal F and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2R and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2L and connector C-01

• TCM

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2R and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2L and front body control module (FBCM) terminal 2I

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Front body control module (FBCM) power supply voltage or body ground malfunction

• Front body control module (FBCM) malfunction

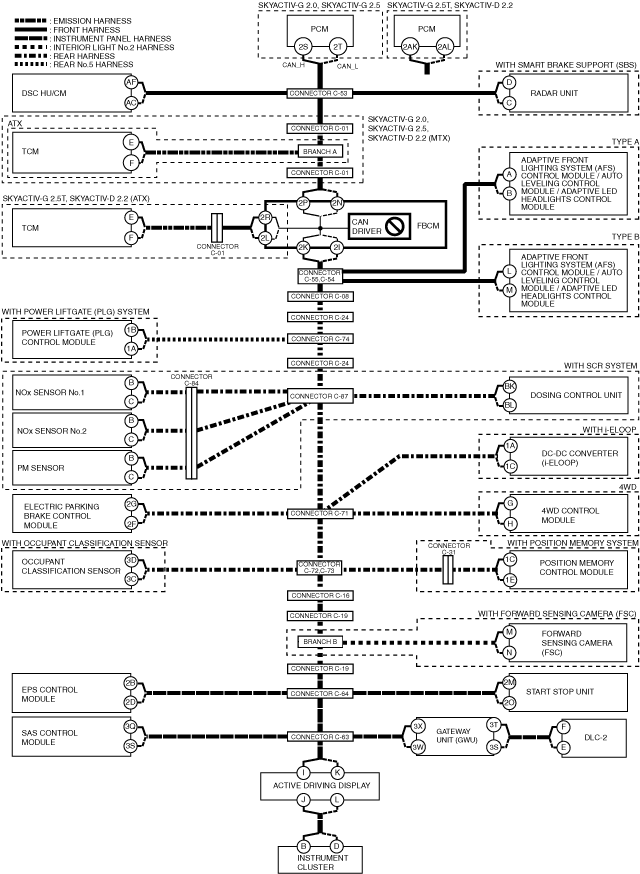

System wiring diagram

ac5wzw00014703

Inspection item

• Front body control module (FBCM) power supply voltage-related wiring harness and fuse

• Front body control module (FBCM) body ground related wiring harness

• Front body control module (FBCM)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between front body control module (FBCM) and connectors C-55,C-54

• Connectors C-55,C-54 malfunction

• CAN circuit in front body control module (FBCM) malfunction

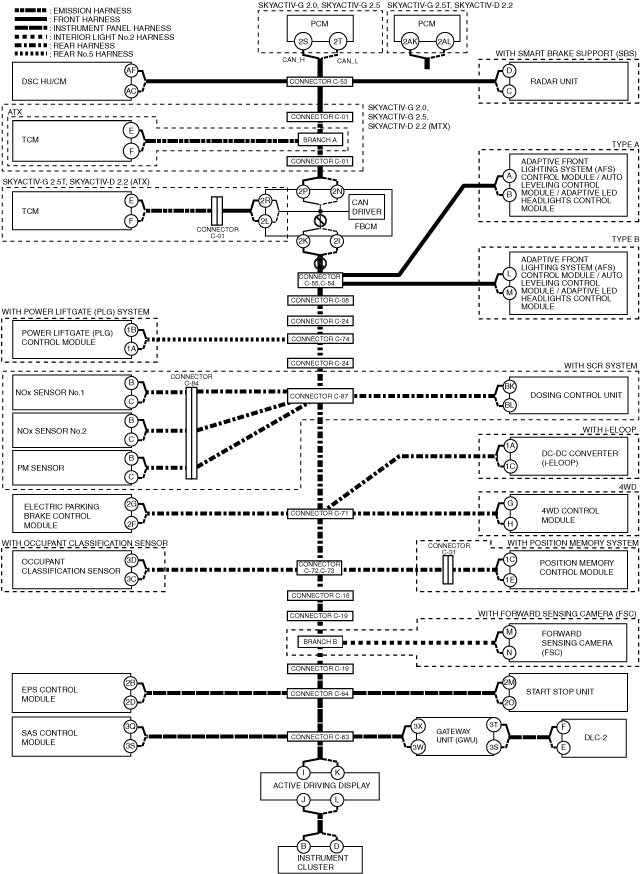

System wiring diagram

ac5wzw00014704

Inspection item

• Front body control module (FBCM) connector

• Connectors C-55,C-54

• Wiring harness between front body control module (FBCM) terminal 2K and connector C-55

• Wiring harness between front body control module (FBCM) terminal 2I and connector C-54

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module and connectors C-55,C-54

• Connectors C-55,C-54 malfunction

• Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module malfunction

System wiring diagram

ac5wzw00014705

Inspection item

• Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module power supply voltage-related wiring harness and fuse

• Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module body ground related wiring harness

• Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module connector

• Connectors C-55,C-54

• Wiring harness between adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module terminal A and connector C-55 (type A)

• Wiring harness between adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module terminal B and connector C-54 (type A)

• Wiring harness between adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module terminal L and connector C-55 (type B)

• Wiring harness between adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module terminal M and connector C-54 (type B)

• Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-55, C-54 and connector C-08

• Open circuit in wiring harness between connector C-08 and connector C-24

• Open circuit in wiring harness between connector C-24 and connector C-74

• Connectors C-55, C-54 malfunction

• Connector C-08 malfunction

• Connector C-24 malfunction

• Connector C-74 malfunction

System wiring diagram

ac5wzw00014706

Inspection item

• Connectors C-55,C-54

• Connector C-08

• Connector C-24

• Connector C-74

• Wiring harness between connectors C-55,C-54 and connector C-08

• Wiring harness between connector C-08 and connector C-24

• Wiring harness between connector C-24 and connector C-74

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Power liftgate (PLG) control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between power liftgate (PLG) control module and connector C-74

• Connector C-74 malfunction

• Power liftgate (PLG) control module malfunction

System wiring diagram

ac5wzw00014707

Inspection item

• Power liftgate (PLG) control module power supply voltage-related wiring harness and fuse

• Power liftgate (PLG) control module body ground related wiring harness

• Power liftgate (PLG) control module connector

• Connector C-74

• Wiring harness between power liftgate (PLG) control module terminal 1B and connector C-74

• Wiring harness between power liftgate (PLG) control module terminal 1A and connector C-74

• Power liftgate (PLG) control module

With SCR system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-74 and connector C-24

• Open circuit in wiring harness between connector C-24 and connector C-87

• Connector C-74 malfunction

• Connector C-24 malfunction

• Connector C-87 malfunction

System wiring diagram

ac5wzw00014708

Inspection item

• Connector C-74

• Connector C-24

• Connector C-87

• Wiring harness between connector C-74 and connector C-24

• Wiring harness between connector C-24 and connector C-87

Without SCR system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-74 and connector C-24

• Open circuit in wiring harness between connector C-24 and connector C-71

• Connector C-74 malfunction

• Connector C-24 malfunction

• Connector C-71 malfunction

System wiring diagram

ac5wzw00014709

Inspection item

• Connector C-74

• Connector C-24

• Connector C-71

• Wiring harness between connector C-74 and connector C-24

• Wiring harness between connector C-24 and connector C-71

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• NOx sensor No.1 power supply voltage or body ground malfunction

• Open circuit in wiring harness between NOx sensor No.1 and connector C-84

• Open circuit in wiring harness between connector C-84 and connector C-87

• Connector C-84 malfunction

• Connector C-87 malfunction

• NOx sensor No.1 malfunction

System wiring diagram

ac5uuw00011017

Inspection item

• NOx sensor No.1 power supply voltage-related wiring harness and fuse

• NOx sensor No.1 body ground related wiring harness

• NOx sensor No.1 connector

• Connector C-84

• Connector C-87

• Wiring harness between NOx sensor No.1 terminal B and connector C-84

• Wiring harness between NOx sensor No.1 terminal C and connector C-84

• Wiring harness between connector C-84 and connector C-87

• NOx sensor No.1

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• NOx sensor No.2 power supply voltage or body ground malfunction

• Open circuit in wiring harness between NOx sensor No.2 and connector C-84

• Open circuit in wiring harness between connector C-84 and connector C-87

• Connector C-84 malfunction

• Connector C-87 malfunction

• NOx sensor No.2 malfunction

System wiring diagram

ac5wzw00014710

Inspection item

• NOx sensor No.2 power supply voltage-related wiring harness and fuse

• NOx sensor No.2 body ground related wiring harness

• NOx sensor No.2 connector

• Connector C-84

• Connector C-87

• Wiring harness between NOx sensor No.2 terminal B and connector C-84

• Wiring harness between NOx sensor No.2 terminal C and connector C-84

• Wiring harness between connector C-84 and connector C-87

• NOx sensor No.2

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• PM sensor power supply voltage or body ground malfunction

• Open circuit in wiring harness between PM sensor and connector C-84

• Open circuit in wiring harness between connector C-84 and connector C-87

• Connector C-84 malfunction

• Connector C-87 malfunction

• PM sensor malfunction

System wiring diagram

ac5wzw00014711

Inspection item

• PM sensor power supply voltage-related wiring harness and fuse

• PM sensor body ground related wiring harness

• PM sensor connector

• Connector C-84

• Connector C-87

• Wiring harness between PM sensor terminal B and connector C-84

• Wiring harness between PM sensor terminal C and connector C-84

• Wiring harness between connector C-84 and connector C-87

• PM sensor

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Dosing control unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between dosing control unit and connector C-87

• Connector C-87 malfunction

• Dosing control unit malfunction

System wiring diagram

ac5wzw00014712

Inspection item

• Dosing control unit power supply voltage-related wiring harness and fuse

• Dosing control unit body ground related wiring harness

• Dosing control unit connector

• Connector C-87

• Wiring harness between dosing control unit terminal BK and connector C-87

• Wiring harness between dosing control unit terminal BL and connector C-87

• Dosing control unit

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-87 and connector C-71

• Connector C-87 malfunction

• Connector C-71 malfunction

System wiring diagram

ac5wzw00014713

Inspection item

• Connector C-87

• Connector C-71

• Wiring harness between connector C-87 and connector C-71

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Electric parking brake control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between electric parking brake control module and connector C-71

• Connector C-71 malfunction

• Electric parking brake control module malfunction

System wiring diagram

ac5wzw00014714

Inspection item

• Electric parking brake control module power supply voltage-related wiring harness and fuse

• Electric parking brake control module body ground related wiring harness

• Electric parking brake control module connector

• Connector C-71

• Wiring harness between electric parking brake control module terminal 2G and connector C-71

• Wiring harness between electric parking brake control module terminal 2F and connector C-71

• Electric parking brake control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• 4WD control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between 4WD control module and connector C-71

• Connector C-71 malfunction

• 4WD control module malfunction

System wiring diagram

ac5wzw00014715

Inspection item

• 4WD control module power supply voltage-related wiring harness and fuse

• 4WD control module body ground related wiring harness

• 4WD control module connector

• Connector C-71

• Wiring harness between 4WD control module terminal G and connector C-71

• Wiring harness between 4WD control module terminal H and connector C-71

• 4WD control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• DC-DC converter (i-ELOOP) power supply voltage or body ground malfunction

• Open circuit in wiring harness between DC-DC converter (i-ELOOP) and connector C-71

• Connector C-71 malfunction

• DC-DC converter (i-ELOOP) malfunction

System wiring diagram

ac5wzw00014716

Inspection item

• DC-DC converter (i-ELOOP) power supply voltage-related wiring harness and fuse

• DC-DC converter (i-ELOOP) body ground related wiring harness

• DC-DC converter (i-ELOOP) connector

• Connector C-71

• Wiring harness between DC-DC converter (i-ELOOP) terminal 1A and connector C-71

• Wiring harness between DC-DC converter (i-ELOOP) terminal 1C and connector C-71

• DC-DC converter (i-ELOOP)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-71 and connectors C-72, C-73

• Connector C-71 malfunction

• Connectors C-72, C-73 malfunction

System wiring diagram

ac5wzw00014717

Inspection item

• Connector C-71

• Connectors C-72, C-73

• Wiring harness between connector C-71 and connectors C-72, C-73

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Position memory control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between position memory control module and connector C-31

• Open circuit in wiring harness between connector C-31 and connectors C-72, C-73

• Connector C-31 malfunction

• Connectors C-72, C-73 malfunction

• Position memory control module malfunction

System wiring diagram

ac5wzw00014718

Inspection item

• Position memory control module power supply voltage-related wiring harness and fuse

• Position memory control module body ground related wiring harness

• Position memory control module connector

• Connector C-31

• Connectors C-72, C-73

• Wiring harness between position memory control module terminal 1C and connector C-31

• Wiring harness between position memory control module terminal 1E and connector C-31

• Wiring harness between connector C-31 and connectors C-72, C-73

• Position memory control module

With forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-72, C-73 and connector C-16

• Open circuit in wiring harness between connector C-16 and connector C-19

• Open circuit in wiring harness between connector C-19 and branch B

• Connectors C-72, C-73 malfunction

• Connector C-16 malfunction

• Connector C-19 malfunction

System wiring diagram

ac5wzw00014719

Inspection item

• Connectors C-72, C-73

• Connector C-16

• Connector C-19

• Wiring harness between connectors C-72, C-73 and connector C-16

• Wiring harness between connector C-16 and connector C-19

• Wiring harness between connector C-19 and branch B

Without forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-72, C-73 and connector C-16

• Open circuit in wiring harness between connector C-16 and connector C-19

• Open circuit in wiring harness between connector C-19 and connector C-19

• Open circuit in wiring harness between connector C-19 and connector C-64

• Connectors C-72, C-73 malfunction

• Connector C-16 malfunction

• Connector C-19 malfunction

• Connector C-64 malfunction

System wiring diagram

ac5wzw00014720

Inspection item

• Connectors C-72, C-73

• Connector C-16

• Connector C-19

• Connector C-64

• Wiring harness between connectors C-72, C-73 and connector C-16

• Wiring harness between connector C-16 and connector C-19

• Wiring harness between connector C-19 and connector C-19

• Wiring harness between connector C-19 and connector C-64

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Forward sensing camera (FSC) power supply voltage or body ground malfunction

• Open circuit in wiring harness between forward sensing camera (FSC) and branch B

• Forward sensing camera (FSC) malfunction

System wiring diagram

ac5wzw00014721

Inspection item

• Forward sensing camera (FSC) power supply voltage-related wiring harness and fuse

• Forward sensing camera (FSC) body ground related wiring harness

• Forward sensing camera (FSC) connector

• Wiring harness between forward sensing camera (FSC) terminal M and branch B

• Wiring harness between forward sensing camera (FSC) terminal N and branch B

• Forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch B and connector C-19

• Open circuit in wiring harness between connector C-19 and connector C-64

• Connector C-19 malfunction

• Connector C-64 malfunction

System wiring diagram

ac5wzw00014722

Inspection item

• Connector C-19

• Connector C-64

• Wiring harness between branch B and connector C-19

• Wiring harness between connector C-19 and connector C-64

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• EPS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between EPS control module and connector C-64

• Connector C-64 malfunction

• EPS control module malfunction

System wiring diagram

ac5wzw00014723

Inspection item

• EPS control module power supply voltage-related wiring harness and fuse

• EPS control module body ground related wiring harness

• EPS control module connector

• Connector C-64

• Wiring harness between EPS control module terminal 2B and connector C-64

• Wiring harness between EPS control module terminal 2D and connector C-64

• EPS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Start stop unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between start stop unit and connector C-64

• Connector C-64 malfunction

• Start stop unit malfunction

System wiring diagram

ac5wzw00014724

Inspection item

• Start stop unit power supply voltage-related wiring harness and fuse

• Start stop unit body ground related wiring harness

• Start stop unit connector

• Connector C-64

• Wiring harness between start stop unit terminal 2M and connector C-64

• Wiring harness between start stop unit terminal 2O and connector C-64

• Start stop unit

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-64 and connector C-63

• Connector C-64 malfunction

• Connector C-63 malfunction

System wiring diagram

ac5wzw00014725

Inspection item

• Connector C-64

• Connector C-63

• Wiring harness between connector C-64 and connector C-63

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• SAS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between SAS control module and connector C-63

• Connector C-63 malfunction

• SAS control module malfunction

System wiring diagram

ac5wzw00014726

Inspection item

Warning

• Handling the component parts of the SRS air bag system improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag system components of the SRS air bag system.

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• SAS control module power supply voltage-related wiring harness and fuse

• SAS control module body ground related wiring harness

• SAS control module connector

• Connector C-63

• Wiring harness between SAS control module terminal 3Q and connector C-63

• Wiring harness between SAS control module terminal 3S and connector C-63

• SAS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between active driving display and connector C-63

• Connector C-63 malfunction

System wiring diagram

ac5wzw00014727

Inspection item

• Connector C-63

• Wiring harness between active driving display terminal I and connector C-63

• Wiring harness between active driving display terminal K and connector C-63

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Active driving display power supply voltage or body ground malfunction

• Active driving display malfunction

System wiring diagram

ac5wzw00014728

Inspection item

• Active driving display power supply voltage-related wiring harness and fuse

• Active driving display body ground related wiring harness

• Active driving display

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Instrument cluster power supply voltage or body ground malfunction

• Open circuit in wiring harness between instrument cluster and active driving display

• Instrument cluster malfunction

System wiring diagram

ac5wzw00014729

Inspection item

• Instrument cluster power supply voltage-related wiring harness and fuse

• Instrument cluster body ground related wiring harness

• Instrument cluster connector

• Wiring harness between instrument cluster terminal B and active driving display terminal J

• Wiring harness between instrument cluster terminal D and active driving display terminal L

• Instrument cluster

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Gateway unit (GWU) power supply voltage or body ground malfunction

• Open circuit in wiring harness between gateway unit (GWU) and connector C-63

• Connector C-63 malfunction

• Gateway unit (GWU) malfunction

System wiring diagram

ac5wzw00014730

Inspection item

• Gateway unit (GWU) power supply voltage-related wiring harness and fuse

• Gateway unit (GWU) body ground related wiring harness

• Gateway unit (GWU) connector

• Connector C-63

• Wiring harness between gateway unit (GWU) terminal 3X and connector C-63

• Wiring harness between gateway unit (GWU) terminal 3W and connector C-63

• Gateway unit (GWU)
