CAPACITOR (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP]

id131704006000


Procedure Before i-ELOOP-Related Part Servicing

Warning
•  If the terminal of one of the i-ELOOP-related parts contacts the vehicle body with the service plug of the capacitor connected, it could cause a fire and damage to electrical parts. In addition, if the terminal contacts your body, it could cause electrocution. Disconnect the service plug of the capacitor before disconnecting the i-ELOOP-related part terminal. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)
―  For the i-ELOOP-related part terminals, refer to the “PROCEDURE BEFORE i-ELOOP-RELATED PART SERVICING”. (See PROCEDURE BEFORE i-ELOOP-RELATED PART SERVICING [i-ELOOP].)

Cautions On Handling Capacitor (i-ELOOP)

Caution
•  If the capacitor (i-ELOOP) is placed on its side, its function may be lost. When storing/transporting the capacitor, do not place it on its side. (Store/transport in upright position)
•  Do not use a capacitor (i-ELOOP) that has been dropped because it may not operate correctly.
•  When disposing of the capacitor (i-ELOOP), perform compulsory discharge of the capacitor before disposal. (See CAPACITOR (i-ELOOP) COMPULSORY DISCHARGE [i-ELOOP].)

Capacitor (i-ELOOP) Removal/Installation

1.  Turn the steering wheel completely to the right.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

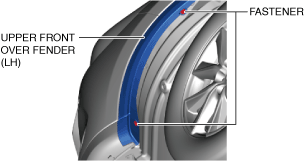

3.  Remove the fasteners.

ac5wzw00010885

4.  Pull the upper front over fender in the direction of the arrow shown in the figure and detach the clips starting from the vehicle front.

ac5wzw00010886

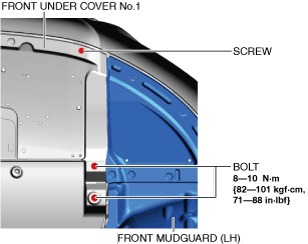

5.  Remove the screw and bolts.

ac5wzw00010887

6.  Remove the screws and fasteners.

ac5wzw00010888

7.  Disconnect the service plug. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)

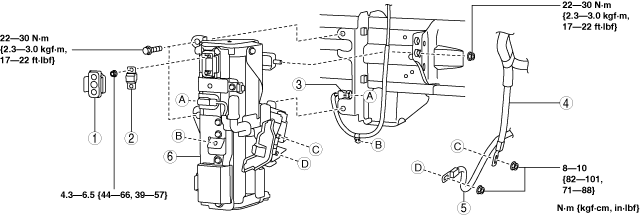

8.  Remove in the order indicated in the table.

9.  Install in the reverse order of removal.

10.  When disposing of the capacitor (i-ELOOP), perform compulsory discharge of the capacitor before disposal. (See CAPACITOR (i-ELOOP) COMPULSORY DISCHARGE [i-ELOOP].)

11.  If the capacitor (i-ELOOP) is replaced with a new one, idle the engine to charge the capacitor.

Note
•  A warning message is displayed in the instrument cluster while the capacitor is charging. Continue idling the engine until the warning message no longer appears.
ac5wzw00010889

1
Fuse cover (for fuse removal/installation only)
2
Fuse (for fuse removal/replacement only)
3
Capacitor connector, wiring harness
4
Battery cable
5
Engine wiring harness
6
Capacitor (i-ELOOP)
(See Capacitor (i-ELOOP) installation note.)


Capacitor (i-ELOOP) installation note

1.  When replacing a capacitor (i-ELOOP) with a new one, remove the short-wire installed to the new capacitor.

am6zzw00012211

Note
•  Dispose of the removed short-wire and nuts as they are unnecessary.
