FOREWORD [360°VIEW MONITOR CONTROL MODULE (TYPE-A)]

id1502cm054100

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure. (See Troubleshooting Procedure.)

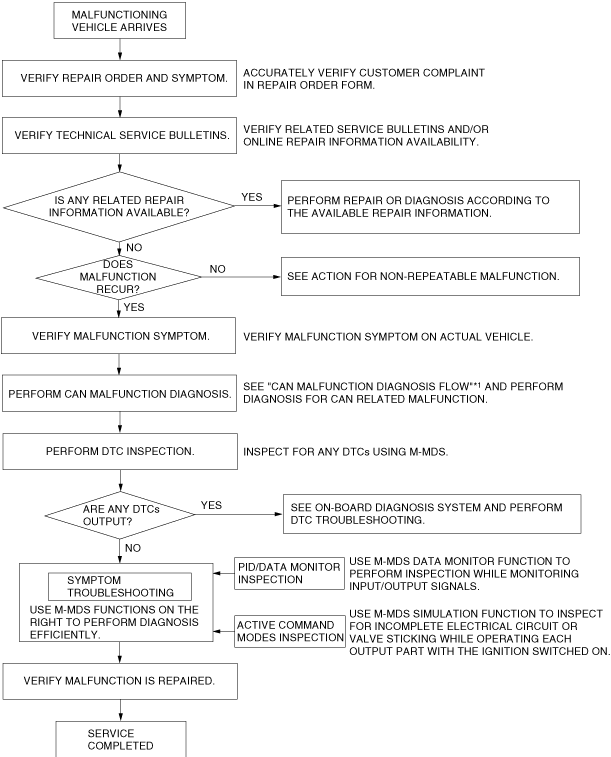

Troubleshooting Procedure

ac9uuw00011379

*1 :(See FOREWORD [TYPE-A (SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (L.H.D.))].) (See FOREWORD [TYPE-A (SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (R.H.D.))].) (See FOREWORD [TYPE-A (SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX) (L.H.D.))].) (See FOREWORD [TYPE-A (SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX) (R.H.D.))].)

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

― Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

― Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.

am6xuw00010122

― Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)

Note

• Tool used (Reference): terminal test kit (49US-15-KIT)

ac5uuw00007975
