360°VIEW MONITOR CONTROL MODULE

id151100004400

Purpose

• The 360° view monitor control module controls the front camera, side cameras (LH, RH), and the rear mount camera based on the input signals from each unit and the 360° view monitor switch.

Function

Camera display function

• The 360° view monitor control module calculates the top view image based on the video signals from each camera, and sends a video signal to the connectivity master unit (CMU).

Top view / Front view, Front wide view, Side view off timer function

• If a maximum of 270 s have elapsed since the display of the top view/front view, front wide view, and side view screen began, the 360° view monitor control module sends a video display cancel signal to the connectivity master unit (CMU).

Structural

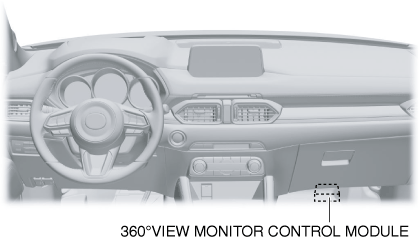

• The 360° view monitor control module is located under the floor covering on the front passenger side.

ac5wzn00004756

Operation

• For the 360° view monitor control module operation, refer to the [360° VIEW MONITOR SYSTEM].(See 360°VIEW MONITOR SYSTEM [TYPE-A].) (See 360°VIEW MONITOR SYSTEM [TYPE-B].)

Fail-safe

• Not applicable
