CRUISE CONTROL SWITCH

id151200001000


Purpose

•  The cruise control switch can switch the Mazda radar cruise control (MRCC) system, the cruising & traffic support (CTS) system, and the adjustable speed limiter (ASL) system on/off, and perform various settings.

Function

•  The cruise control switch sends electric signals for each switch operation to the start stop unit.

Construction

•  Installed to right-hand spoke of the steering wheel.

Function of Buttons


With mazda radar cruise control (MRCC) system, without cruising & traffic support (CTS) system

ac9uun00001417

No.

Name

Function
1
DISTANCE switch
Sets the distance between vehicles for the headway control (4 stages: Long, medium, short, extremely short)
2
Upper switch
•  Sets vehicle speed
•  Increases set vehicle speed
―  Increases speed in approx. 1 km/h {0.6 mph} increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 5 km/h {3 mph} increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
Lower switch
•  Sets vehicle speed
•  Decreases set vehicle speed
―  Decreases speed in approx. 1 km/h {0.6 mph} increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 5 km/h {3 mph} increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 10 km/h {6.2 mph} increments each time switch is long pressed
RESUME switch
Resets the recorded set vehicle speed and begins control.
3
Cancel switch
Cancels the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function)
MRCC OFF switch
Turns off the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function)
4
MRCC ON switch
Turns on the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function)

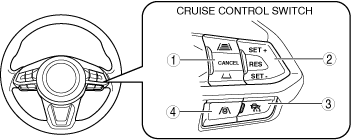

With mazda radar cruise control (MRCC) system, with cruising & traffic support (CTS) system, without adjustable speed limiter (ASL) system

ac5wzn00005858

No.

Name

Function
1
DISTANCE switch
Sets the distance between vehicles for the headway control (4 stages: Long, medium, short, extremely short)
Cancel switch
Cancels the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function), and the cruising & traffic support (CTS) system
2
Upper switch
•  Sets vehicle speed
•  Increases set vehicle speed
―  Increases speed in approx. 1 km/h {0.6 mph} increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 5 km/h {3 mph} increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
Lower switch
•  Sets vehicle speed
•  Decreases set vehicle speed
―  Decreases speed in approx. 1 km/h {0.6 mph} increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 5 km/h {3 mph} increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 10 km/h {6.2 mph} increments each time switch is long pressed
RESUME switch
Resets the recorded set vehicle speed and begins control.
3
MRCC ON/OFF switch
Turns on/off the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function)
4
CTS ON/OFF switch
Turns on/off the cruising & traffic support (CTS) system


With mazda radar cruise control (MRCC) system, with cruising & traffic support (CTS) system, with adjustable speed limiter (ASL) system

ac5wzn00005859

No.

Name

Function
1
MRCC ON/OFF switch
Turns on/off the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function)
ASL ON/OFF switch
Turns on/off the adjustable speed limiter (ASL) system
CTS ON/OFF switch
Turns on/off the cruising & traffic support (CTS) system
2
Upper switch
•  Sets vehicle speed
•  Increases set vehicle speed
―  Increases speed in approx. 1 km/h {0.6 mph} increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 5 km/h {3 mph} increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
Lower switch
•  Sets vehicle speed
•  Decreases set vehicle speed
―  Decreases speed in approx. 1 km/h {0.6 mph} increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 5 km/h {3 mph} increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 10 km/h {6.2 mph} increments each time switch is long pressed
RESUME switch
Resets the recorded set vehicle speed and begins control.
3
Cancel switch
Cancels the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function), the cruising & traffic support (CTS) system, and the Adjustable speed limiter (ASL) system
4
DISTANCE switch
Sets the distance between vehicles for the headway control


Fail-safe

•  Not applicable
