FRONT CAMERA REMOVAL/INSTALLATION

id152000009700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

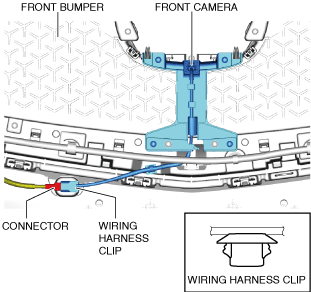

ac5wzw00011914

5.  Remove the front wiring harness clip.

6.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

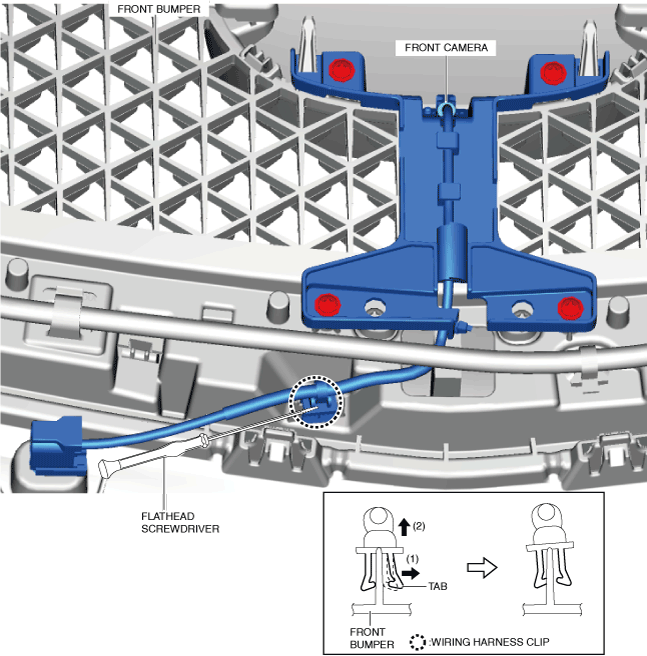

ac5wzw00011915

7.  Move the wiring harness clip tab in the order of arrows (1) and (2) shown in the figure and detach the wiring harness clip tab from the front bumper.

8.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

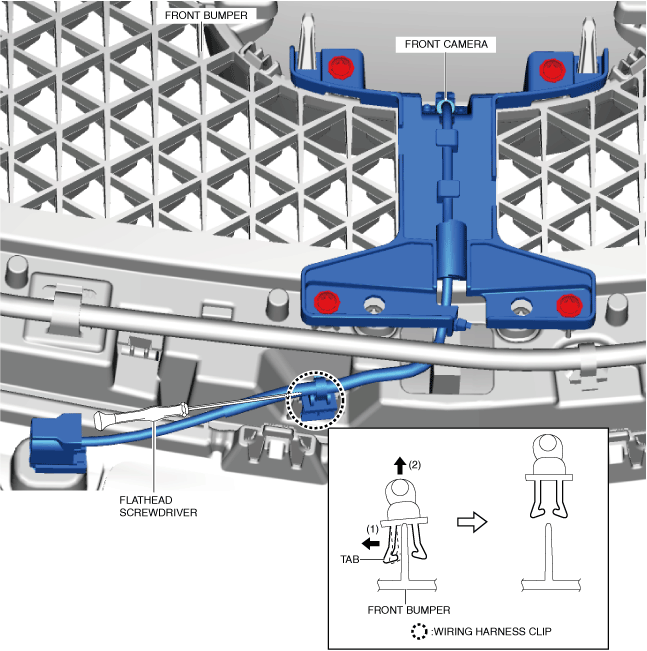

ac5wzw00011916

9.  Move the wiring harness clip tab in the order of arrows (1) and (2) shown in the figure and detach the wiring harness clip from the front bumper.

10.  Remove the screws.

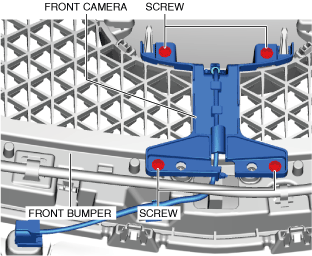

ac5wzw00011917

11.  Remove the front camera.

12.  Install in the reverse order of removal.

13.  Perform the front camera aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)
