CENTER DISPLAY [(TYPE-B) (E)]

id1600000004a9

Note

• iPod, iPhone, and Apple CarPlay are registered trademarks of Apple Inc.

• Android, and Android Auto are registered trademarks of Google LLC.

Purpose

• The center display displays entertainment system and vehicle information.

Function

• The center display displays video images based on the signal sent by the GMSL signal from the connectivity master unit (CMU).

Display information

• The information displayed by the center display is as follows: Refer to the referenced section for details of the displayed information.

Display content

Reference

Home screen

(See Home screen.)

Information screen

(See Information screen.)

Entertainment screen

(See Entertainment screen.)

Communication screen

(See Communication screen.)

Navigation screen

(See Navigation screen.)

Setting screen

(See Settings screen.)

Apple CarPlay™

(See Apple CarPlay™.)

Android Auto™

(See Android Auto™.)

Display content	Reference
Home screen	(See Home screen.)
Information screen	(See Information screen.)
Entertainment screen	(See Entertainment screen.)
Communication screen	(See Communication screen.)
Navigation screen	(See Navigation screen.)
Setting screen	(See Settings screen.)
Apple CarPlay™	(See Apple CarPlay™.)
Android Auto™	(See Android Auto™.)

Home screen

• The home screen displays entertainment system information.

• When the ignition is switched to ACC or ON (engine off or on), the home screen is displayed in the center display.

bmcozp00001176

No.

Menu

1

Information screen

2

Entertainment screen

3

Notifications screen

4

Communication screen

5

Navigation screen^*3

6

Setting screen

7

Apple CarPlay™^*4

Android Auto™^*5

*1 :With car-navigation system

*2 :When Apple CarPlay™ is available.

*3 :When Android Auto™ is available.

Information screen

• Information concerning fuel efficieny monitor, siriusXM travel link, vehicle status monitor, owner’s manual and warnings can be verified.

bmcozp00000412

Display content

Reference

Fuel Efficiency Monitor

(See Fuel efficiency monitor .)

Vehicle Status Monitor

(See Vehicle Status Monitor.)

Owner’s manual

(See Entertainment screen.)

Display content	Reference
Fuel Efficiency Monitor	(See Fuel efficiency monitor .)
Vehicle Status Monitor	(See Vehicle Status Monitor.)
Owner’s manual	(See Entertainment screen.)

Fuel efficiency monitor

• Displays the fuel efficiency information.

Fuel efficiency monitor verification procedure

1. Select the “Information” button on the Home screen.

2. Select [Fuel Efficiency Monitor] on the information screen to display the warning guidance.

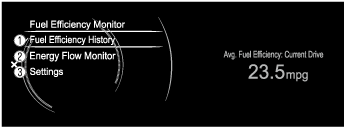

• The buttons on the menu screen operate as follows:

Display

Content

1

Displays the information regarding the fuel efficiency.

2

Displays the system operation status.

3

Displays the settings for the fuel efficiency monitor.

Display	Content
	1	Displays the information regarding the fuel efficiency.
2	Displays the system operation status.
3	Displays the settings for the fuel efficiency monitor.

Fuel Consumption

• The information regarding the fuel economy is displayed.

Display

Content

1

•  Displays the fuel economy for the past 60 minutes.

―  Displays the fuel economy every minute for the past 1 to 10 minutes.

―  Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.

2

Displays the average fuel economy over the past 5 resets and after the current reset.

3

•  Displays the average fuel economy from when the ignition is switched ON (engine on) to the current time.

•  The average fuel economy is updated every 60 s.

•  If there is no average fuel economy data, displays “——”.

Display	Content
	1	• Displays the fuel economy for the past 60 minutes. ― Displays the fuel economy every minute for the past 1 to 10 minutes. ― Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.
2	Displays the average fuel economy over the past 5 resets and after the current reset.
3	• Displays the average fuel economy from when the ignition is switched ON (engine on) to the current time. • The average fuel economy is updated every 60 s. • If there is no average fuel economy data, displays “——”.

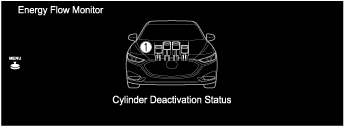

Energy Flow Monitor

• The information regarding the energy flow monitor is displayed.

Display

Content

1

The condition of each cylinder is displayed by colors. The operating cylinders are displayed in red.

Display	Content
	1	The condition of each cylinder is displayed by colors. The operating cylinders are displayed in red.

Vehicle Status Monitor

• Displays the vehicle status monitor information.

Vehicle Status Monitor verification procedure

1. Select the “Information” button on the Home screen.

2. Select [Vehicle Status Monitor] on the information screen to display the warning guidance.

• The buttons on the menu screen operate as follows:

Item

Explanation

Vehicle Warning Messages

If there is a problem with the vehicle, information about the problem is displayed.

Next Service

The next maintenance period is displayed.

Date

•  The date manually set by the customer is displayed.

Distance

•  If “Next Service Date” is set to “Automatic”

―  The “Distance Until Oil Change” content is displayed.

•  If “Next Service Date” is set to “Manual”

―  The traveled distance manually set by the customer is displayed. However, when any of the following conditions is met, the “Distance Until Oil Change” content is displayed.

•  You have not set the traveled distance.

•  “Distance Until Oil Change” is shorter than the traveled distance set by the customer

Maintenance Details

Distance Until Oil Change

The traveled distance until engine oil needs to be replaced is displayed.

Next Service

The next maintenance period manually set by the customer is displayed

Tire pressure monitor

The current tire pressure can be checked.

1.   When tire pressures were last modified

2.  Air pressure of each tire

3.  Condition of each tire

―  When air pressure is low: Yellow color

―  When air pressure is correct: Blue color

―  When air pressure cannot be monitored: Black color

4.  Tire pressure units

Vehicle Maintenance Settings

Next Service Date

The method of setting the next maintenance can be selected from the following.

•  Automatic

•  Manual

Set Next Service Date

If “Next Service Date” is set to “Manual”, the next maintenance date can be set.

Set Next Service Distance

If “Next Service Date” is set to “Manual”, the traveled distance until the next maintenance period can be set.

Reset Oil Change Distance

The “Distance Until Oil Change” content can be reset. After replacing the engine oil, perform the reset (engine oil data resetting) of the recorded value in this item.

Item	Explanation
Vehicle Warning Messages	If there is a problem with the vehicle, information about the problem is displayed.
Next Service	The next maintenance period is displayed. Date • The date manually set by the customer is displayed. Distance • If “Next Service Date” is set to “Automatic” ― The “Distance Until Oil Change” content is displayed. • If “Next Service Date” is set to “Manual” ― The traveled distance manually set by the customer is displayed. However, when any of the following conditions is met, the “Distance Until Oil Change” content is displayed. • You have not set the traveled distance. • “Distance Until Oil Change” is shorter than the traveled distance set by the customer
Maintenance Details	Distance Until Oil Change	The traveled distance until engine oil needs to be replaced is displayed.
Next Service	The next maintenance period manually set by the customer is displayed
Tire pressure monitor
The current tire pressure can be checked. 1. When tire pressures were last modified 2. Air pressure of each tire 3. Condition of each tire ― When air pressure is low: Yellow color ― When air pressure is correct: Blue color ― When air pressure cannot be monitored: Black color 4. Tire pressure units
Vehicle Maintenance Settings	Next Service Date	The method of setting the next maintenance can be selected from the following. • Automatic • Manual
Set Next Service Date	If “Next Service Date” is set to “Manual”, the next maintenance date can be set.
Set Next Service Distance	If “Next Service Date” is set to “Manual”, the traveled distance until the next maintenance period can be set.
Reset Oil Change Distance	The “Distance Until Oil Change” content can be reset. After replacing the engine oil, perform the reset (engine oil data resetting) of the recorded value in this item.

Entertainment screen

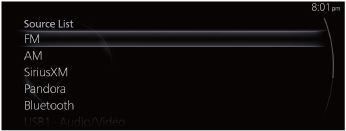

• When the entertainment button on the home screen is selected, the entertainment screen is displayed. The following audio functions in the table below are available.

bmcozp00000418

Display content

Function

FM

Switches to FM radio screen.

AM

Switches to AM radio screen.

Bluetooth <Device Name>

Switches to Bluetooth^® audio screen.

Note

•  If available, the connecting device name is displayed. When Bluetooth^® is not available, such as no device is connected, only Bluetooth^® is displayed.

USB1 <Device Name>

Switches to USB audio/USB video screen.

Note

•  If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.

USB2 <Device Name>

Switches to USB audio/USB video screen.

Note

•  If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.

Display content	Function
FM	Switches to FM radio screen.
AM	Switches to AM radio screen.
Bluetooth <Device Name>	Switches to Bluetooth^® audio screen. Note • If available, the connecting device name is displayed. When Bluetooth^® is not available, such as no device is connected, only Bluetooth^® is displayed.
USB1 <Device Name>	Switches to USB audio/USB video screen. Note • If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.
USB2 <Device Name>	Switches to USB audio/USB video screen. Note • If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.

Note

• When iPhone® is connected to the USB port of the USB port/SD card slot hub, Apple CarPlay™ is indicated at the position of USB1 indicated on the center display.

• When Android™ is connected to the USB port of the USB port/SD card slot hub, Android Auto™ is indicated at the position of USB1 indicated on the center display.

Communication screen

• SMS (Short Message Service), and Hands-free telephone (HF/TEL) functions can be used.

bmcozp00000419

Display content

Function

Favorites

Switches to the favorite screen.

Call History

Displays the call history.

Contacts

Displays the phone book.

Dial Pad

Switches to the dial screen for phone number input.

Text Messages

Switches to the text messages screen.

Communication Settings

Switches ON/OFF of the SMS notification function.

Display content	Function
Favorites	Switches to the favorite screen.
Call History	Displays the call history.
Contacts	Displays the phone book.
Dial Pad	Switches to the dial screen for phone number input.
Text Messages	Switches to the text messages screen.
Communication Settings	Switches ON/OFF of the SMS notification function.

Note

• If Bluetooth^® communication is not established between a mobile device such as a Bluetooth^®-enabled smart phone, the functions dependent on the mobile device are displayed in gray and they are not available.

• If there any unread notification or SMS, the number of unread messages is displayed beside each item name. The number of missed call is displayed next to “Call History”.

Navigation screen

• When the navigation button on the home screen is selected, the navigation screen is displayed. Navigation information such as the current position and route guidance to destination is displayed on this screen.

Settings screen

• The following settings can be changed. For details, refer to the [ENTERTAINMENT SYSTEM] setting function. (See ENTERTAINMENT SYSTEM [(TYPE-B) (E)].)

Menu

Reference

In-Vehicle Displays

(See ENTERTAINMENT SYSTEM [(TYPE-B) (E)].)

Configures settings and content for all in-vehicle displays.

Sound Settings

Configures the in-vehicle listening experience.

Vehicle Settings

Configures vehicle convenience features.

Safety Settings

Configures safety and driver assistance features.

Connectivity Settings

Connection settings can be configured for linking Bluetooth® and Smartphone functions.

System Settings

Configures language, time, and other general settings.

Menu	Reference
In-Vehicle Displays	(See ENTERTAINMENT SYSTEM [(TYPE-B) (E)].)	Configures settings and content for all in-vehicle displays.
Sound Settings	Configures the in-vehicle listening experience.
Vehicle Settings	Configures vehicle convenience features.
Safety Settings	Configures safety and driver assistance features.
Connectivity Settings	Connection settings can be configured for linking Bluetooth® and Smartphone functions.
System Settings	Configures language, time, and other general settings.

Apple CarPlay™

Apple CarPlay™ home screen display procedure

• The Apple CarPlay™ home screen is displayed when any of the following operations are performed.

― Select [Apple CarPlay™] on home screen.

― Long-press commander switch HOME button.

• The display content is as follows.

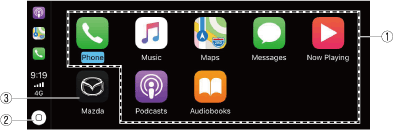

Apple CarPlay™ mode home screen

Display	Content
	1	Launch the Apple CarPlay™ application.
	2	Displays the Apple CarPlay™ home screen.
	3	Displays the Mazda Connect screen.

Android Auto™

Android Auto™ home screen display procedure

• The Android Auto™ home screen is displayed when any of the following operations are performed.

― Select [Android Auto™] on home screen.

― Long-press commander switch HOME button.

• The display content is as follows.

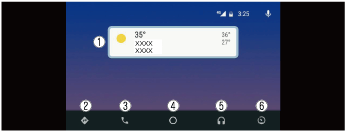

Android Auto™mode home screen

Display	Content
	1	Displays the use history of each application. The displayed contents differdepending on the application that has been started and its status.
	2	Switches to the map application.
	3	Switches to the call mode.
	4	Displays the Android Auto™ home screen.
	5	Switches to the Music application.
	6	Switches to the Mazda Connect screen.
