•  Converts radio broadcast waves to electric signals and sends the signals to the tuner and amp unit (TAU).

•  A center roof antenna has been adopted which does not require retraction or removal before going through an automatic car wash machine.

•  The center roof antenna has an integrated antenna amplifier which amplifies the electric signal.

•  Refer to the Workshop Manual for the [ENTERTAINMENT LOCATION INDEX]. (See LOCATION INDEX [(TYPE-A) (E)].)

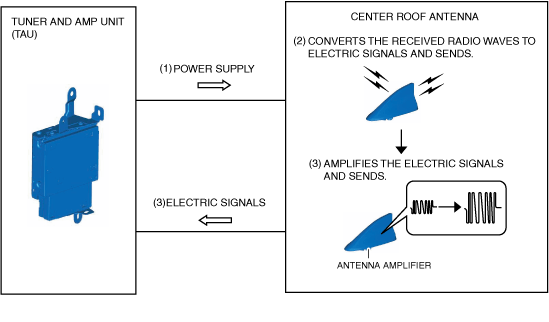

1.  The TAU supplies (1) power to the antenna amplifier in the center roof antenna.

2.  The center roof antenna converts (2) the received radio waves of a radio broadcast to an electric signal.

3.  The center roof antenna amplifies the converted electric signal using the antenna amplifier and sends (3) the signal to the TAU.

•  Not applicable
