DTC U3003:17 [TELEMATICS COMMUNICATION UNIT (TYPE-B)]

id1602a7012100

Outline

System malfunction location

Telematics communication unit power supply voltage high input

Detection condition

•  The telematics communication unit power supply circuit voltage is higher than the standard for 10 s or more.

Fail-safe

Not applicable

Possible cause

•  Telematics communication unit connector or terminal malfunction

•  Short to power supply in telematics communication unit power supply circuit

•  Telematics communication unit malfunction

System malfunction location	Telematics communication unit power supply voltage high input
Detection condition	• The telematics communication unit power supply circuit voltage is higher than the standard for 10 s or more.
Fail-safe	Not applicable
Possible cause	• Telematics communication unit connector or terminal malfunction • Short to power supply in telematics communication unit power supply circuit • Telematics communication unit malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

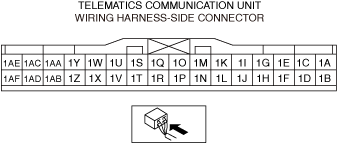

INSPECT TELEMATICS COMMUNICATION UNIT CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(Refer to the [CONNECTOR INSPECTION] in the workshop manual)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

2

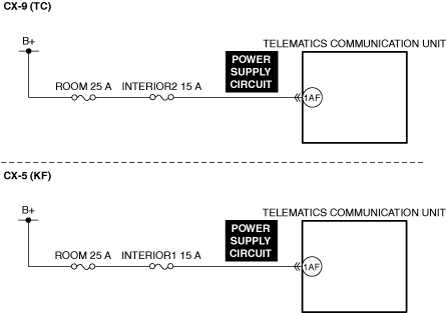

INSPECT TELEMATICS COMMUNICATION UNIT POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(Refer to the [CIRCUIT INSPECTION] in the workshop manual)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Clear the DTC recorded in the memory.
(Refer to the [CLEARING DTC] in the workshop manual)

•  Switch the ignition ON (engine off or on) and wait for 10 s or more.

•  Perform the DTC inspection for the telematics communication unit.
(Refer to the [DTC INSPECTION] in the workshop manual)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(Refer to the [CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW] in the workshop manual)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the telematics communication unit, then go to the next step.
(Refer to the [TELEMATICS COMMUNICATION UNIT REMOVAL/INSTALLATION] in the workshop manual)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(Refer to the [DTC INSPECTION] in the workshop manual)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT TELEMATICS COMMUNICATION UNIT CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (Refer to the [CONNECTOR INSPECTION] in the workshop manual) • Are the connector and terminal normal?	Yes	Go to the next step.
1		No	Repair or replace the malfunctioning location and perform the repair completion verification.
2	INSPECT TELEMATICS COMMUNICATION UNIT POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (Refer to the [CIRCUIT INSPECTION] in the workshop manual) • Is the circuit normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Clear the DTC recorded in the memory. (Refer to the [CLEARING DTC] in the workshop manual) • Switch the ignition ON (engine off or on) and wait for 10 s or more. • Perform the DTC inspection for the telematics communication unit. (Refer to the [DTC INSPECTION] in the workshop manual) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (Refer to the [CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW] in the workshop manual) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the telematics communication unit, then go to the next step. (Refer to the [TELEMATICS COMMUNICATION UNIT REMOVAL/INSTALLATION] in the workshop manual)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (Refer to the [DTC INSPECTION] in the workshop manual) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
