FOREWORD [CONNECTIVITY MASTER UNIT (TYPE-A) (E)]

id1602a80300c2

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to troubleshooting procedure. (See Troubleshooting Procedure.)

Troubleshooting Procedure

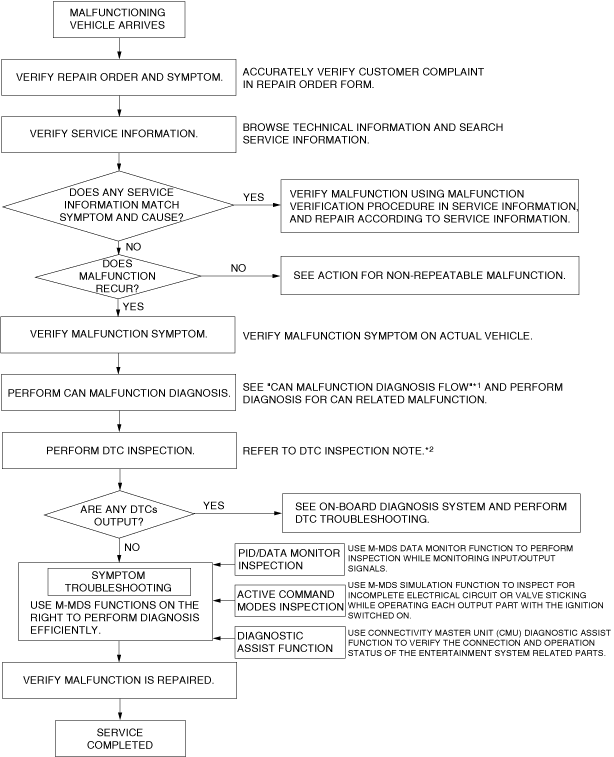

atsuzw00000268

*1 :(Refer to the [CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW] in the workshop manual)

*2 :(See DTC Inspection Note.)

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

― Verify that a DTC has been recorded in the memory. (See DTC INSPECTION [CONNECTIVITY MASTER UNIT (TYPE-A)].)

― Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

― Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.

ac5uuw00007565

― Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (Refer to the [ELECTRICAL SYSTEM] in the workshop manual)

Note

• SST (Reference): PROBE KIT (49US 15 1A0)

amxzzw00004455

DTC Inspection Note

• DTCs for the connectivity master unit (CMU) can be verified using the M-MDS or the on-board diagnostic test mode in which the on-board diagnostic function can be launched by operating the commander switch or center display.
