FOREWORD [ENTERTAINMENT SYSTEM (WITH CENTER DISPLAY) (TYPE-A) (E)]

id160309059713

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

•  If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure. (See Troubleshooting Procedure.)

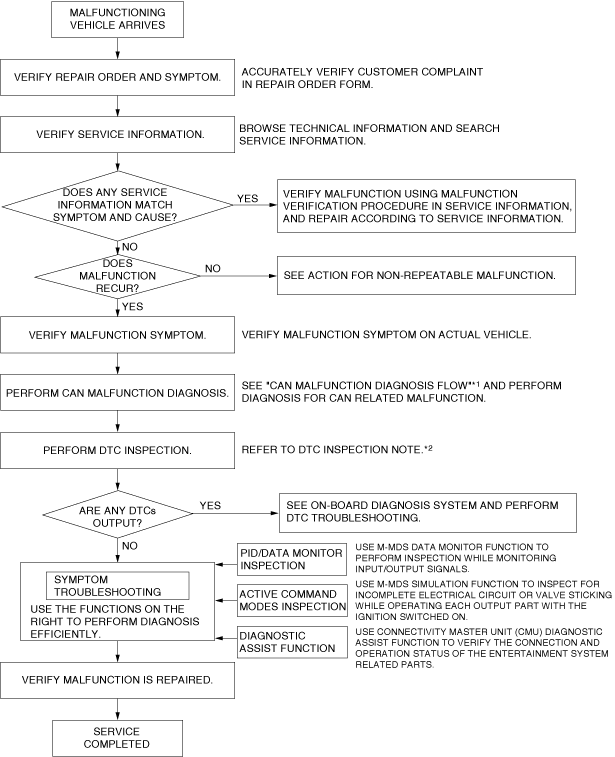

Troubleshooting Procedure

atsuzw00000270
*1  :(Refer to the [CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW] in the workshop manual.)
*2  :(See DTC Inspection Note.)

Action for Non-repeatable Malfunction

•  If the malfunction does not recur, verify the malfunction cause by performing the following actions:
―  Verify that a DTC has been recorded in the memory. (See DTC INSPECTION [CONNECTIVITY MASTER UNIT (TYPE-A)].) (See DIAGNOSTIC ASSIST FUNCTION [CONNECTIVITY MASTER UNIT (TYPE-A) (E)].)
―  Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
―  Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.
ac5uuw00007565
―  Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (Refer to the [ELECTRICAL SYSTEM] in the workshop manual.)
Note
•  SST (Reference): PROBE KIT (49US 15 1A0)
amxzzw00004455

DTC Inspection Note

•  DTCs for the entertainment system [with center display] can be verified using the M-MDS or the on-board diagnostic test mode in which the on-board diagnostic function can be launched by operating the commander switch or the center display. (See DTC INSPECTION [CONNECTIVITY MASTER UNIT (TYPE-A)].) (See DIAGNOSTIC ASSIST FUNCTION [CONNECTIVITY MASTER UNIT (TYPE-A) (E)].)

Effects of Non-Genuine, After-market Electrical Components

•  A malfunction may occur due to noise interference from a non-genuine, after-market electrical component.
•  If a non-genuine, after-market electrical component is installed, disconnect the connector or unplug from the 12 V accessory socket and verify that the malfunction recurs. If the malfunction does not recur, it is highly possible that the malfunction is caused by the non-genuine, after-market electrical component.
