MECHANICAL OUTLINE [L3 Turbo]

id0110b3100100

Improved engine performance

•  Variable valve timing mechanism adopted

Weight reduction

•  Aluminum-alloy adopted for mainframe parts (cylinder head and block)

Reduced vibration and noise

•  Aluminum-alloy cylinder head adopted

•  Pendulum-type engine mounts adopted

Improved serviceability

•  Roller timing chain adopted

Structure

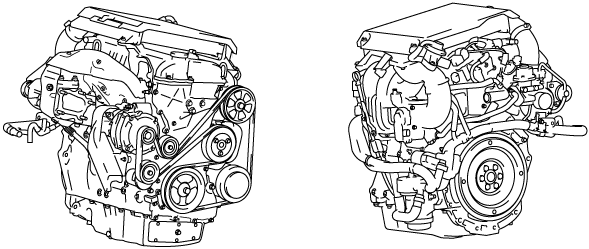

Engine external view

acxuun00000471

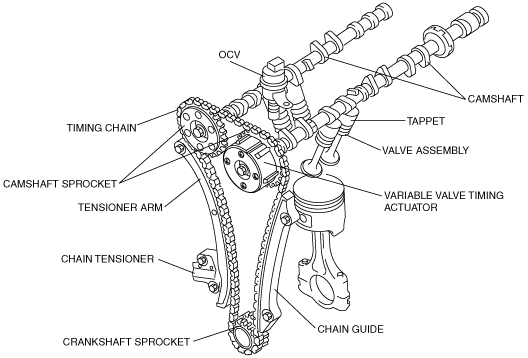

Valve mechanism

acxuun00000472

Improved engine performance	• Variable valve timing mechanism adopted
Weight reduction	• Aluminum-alloy adopted for mainframe parts (cylinder head and block)
Reduced vibration and noise	• Aluminum-alloy cylinder head adopted • Pendulum-type engine mounts adopted
Improved serviceability	• Roller timing chain adopted
