CYLINDER HEAD COVER CONSTRUCTION [L3 Turbo]
id0110b3100200

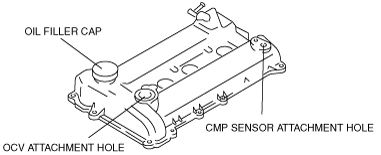

• The cylinder head cover is made of integrated aluminum alloy, which is lightweight and sound absorbent.
• The oil filler cap is a screw-in type. The boss for installing the camshaft position (CMP) sensor is provided at the rear of the cylinder head cover.
• L3 Turbo engine models has a hole for installing the oil control valve (OCV).
