PISTON, PISTON RING, PISTON PIN CONSTRUCTION [L3 Turbo]
id0110b3100600
• The piston head has a concave recess to accommodate the turbocharger.
• A superior quality, heat resistant, highly-conductive aluminum alloy has been adopted for the pistons.
• Offset pistons have been adopted to reduce piston slapping.
• The piston has an arrow mark, located on top of the piston, pointing to the front side in order to prevent improper installation.
• A bushing is installed on the small end of the connecting rod for a full-floating connection of the piston, piston pin, and connecting rod.

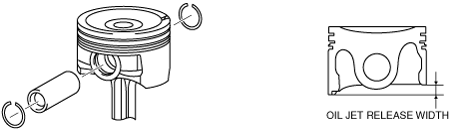

• The construction of the piston skirt is asymmetric on the left and right side to prevent interference between the piston and oil jet.

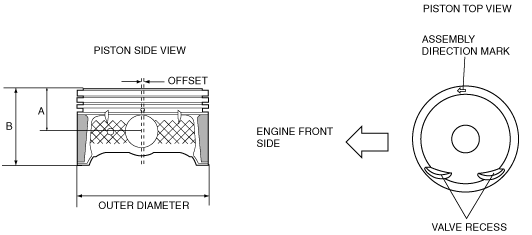

Piston specification
|
Item
|
Specification
|
|
Outer diameter
|
(mm {in})
|
87.465—87.495 {3.4435—3.4446}
|
|
Offset
|
(mm {in})
|
0.8 {0.04}
|
|
Compression height: A
|
(mm {in})
|
32.5{1.2795}
|
|
Total height: B
|
(mm {in})
|
55.0{2.1654}
|
