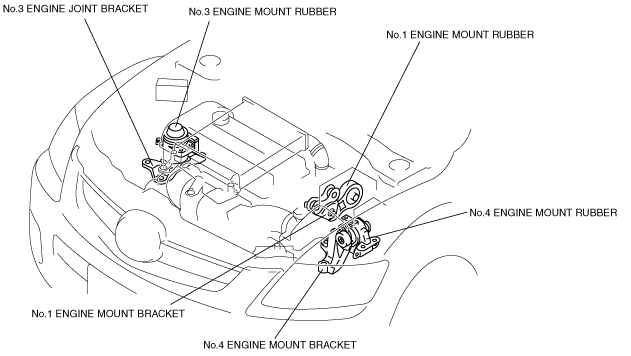

ENGINE MOUNT OUTLINE [L3 Turbo]


id0110b3101400

•  The layout of the engine mount is pendulum type, which reduces the noise in the cabin.
•  The engine supported at three points, and simplification of engine mount composition parts is attained.
•  The No.3 engine mount rubber, which is an oil-filled type, has been adopted to reduce the noise in the cabin.
•  The surface of the No.3 engine joint bracket and No.1 engine-mount rubber is made of aluminum alloy to decrease weight.
