FRONT OIL SEAL REPLACEMENT [L3 Turbo]

id0110b3800800

1.  Disconnect the negative battery cable.

2.  Remove the under cover.

3.  Remove the splash shield (RH).

4.  Remove the charge air cooler. (SeeINTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

5.  Remove the high pressure fuel pump. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [L3 Turbo].)

6.  Remove the drive belt. (SeeDRIVE BELT REMOVAL/INSTALLATION [L3 Turbo].)

7.  Remove the ignition coils. (SeeIGNITION COIL REMOVAL/INSTALLATION [L3 Turbo].)

8.  Disconnect the wiring harness.

9.  Remove the ventilation hose.

10.  Remove cylinder head cover. (SeeTIMING CHAIN REMOVAL/INSTALLATION [L3 Turbo].)

11.  Remove the crankshaft position (CKP) sensor. (SeeCRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [L3 Turbo].)

12.  Remove the bracket shown in the figure, and place the power steering pressure hose outside of the vehicle.

acxuuw00002078

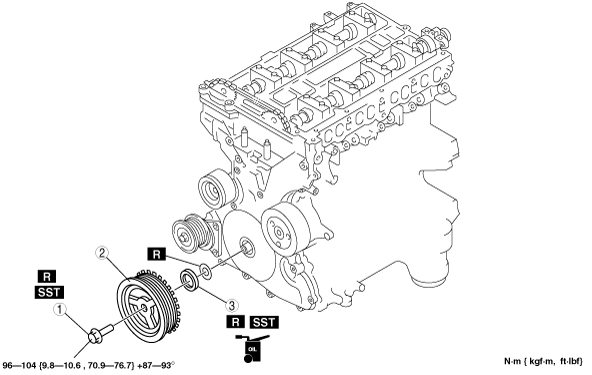

13.  Remove in the order indicated in the figure.

14.  Install in the reverse order of removal.

acxaaw00000794

1
Crankshaft pulley lock bolt
(SeeCrankshaft Pulley Lock Bolt Removal Note.)
(SeeCrankshaft Pulley Lock Bolt Installation Note.)
2
Crankshaft pulley
3
Front oil seal
(SeeFront Oil Seal Removal Note.)
(SeeFront Oil Seal Installation Note.)


Crankshaft Pulley Lock Bolt Removal Note

1.  Rotate the crankshaft in the direction of the engine rotation and remove the cylinder block lower blind plug when the No. 1 cylinder is at the point prior to top dead center (TDC) of compression, then install the SST.

acxaaw00000101

2.  Rotate the crankshaft in the direction of the engine rotation so that the No.1 piston is at TDC of the compression stroke. (Until the crank weight contacts SST and stops.)

3.  Install the SSTs to the crankshaft pulley and lock the crankshaft against rotation.

acxaaw00000102


Front Oil Seal Removal Note

1.  Remove the oil seal lip using a razor.

2.  Remove the oil seal using a flathead screwdriver with the tip protected by a rag to prevent crankshaft oil seal damage.

acxaaw00000103


Front Oil Seal Installation Note

1.  Apply clean engine oil to a new oil seal.

2.  Insert the oil seal into the engine front cover.

3.  Tap in the oil seal using the SST.

acxuuw00000200
acxuuw00000201

Front oil seal press-in amount
0—0.5 mm {0—0.019 in}


Crankshaft Pulley Lock Bolt Installation Note

1.  Install the SST to the camshaft as shown in the figure.

acxuuw00000202

2.  Verify that cylinder No.1 is at TDC of the compression stroke. (Position crank weight contacts SST.)

3.  To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 x 1.0), fix the crankshaft pulley to the engine front cover.

acxuuw00000203

4.  Install the SSTs to the crankshaft pulley and lock the crankshaft against rotation, and tighten the crankshaft pulley lock bolt using the following two steps.

acxaaw00000102

Tightening procedure
1.  96—104 N·m {9.8—10.6 kgf·m, 70.9—76.7 ft·lbf}
2.  87—93°

5.  Remove the crankshaft pulley installation bolt (M6 X 1.0).

6.  Remove the SST from the camshaft.

7.  Remove the SST installed in the cylinder block lower blind plug hole.

8.  Rotate the crankshaft clockwise two turns and inspect the valve timing.

•  If not aligned, repeat from Step 1.

9.  Install the cylinder block lower blind plug.

acxuuw00000204

Tightening torque
18—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}
