OIL FILTER CONSTRUCTION [L3 Turbo]
id0111b4100800

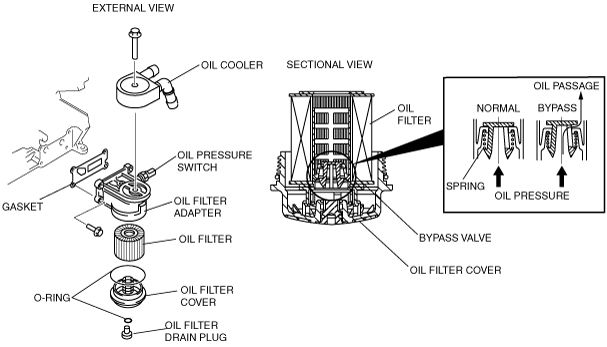

• The oil filter component is installed on the left surface (vehicle front) of the cylinder block.
• An aluminum oil filter adapter has been adopted for weight reduction. The oil pressure switch and oil cooler are installed on the oil filter adapter.
• A resin oil filter cover has been adopted for weight reduction. A drain plug has been installed on the bottom of the oil filter cover to improve replacement serviceability.
• An environment-friendly oil filter made of incinerable polyester has been adopted. Only the filter paper needs to be replaced.
Oil filter specification
|
Item
|
Specification (mm {in})
|
|
Outer diameter
|
65.2—65.8 {2.57—2.59}
|
|
Height
|
72.6—74.4 {2.86—2.92}
|
