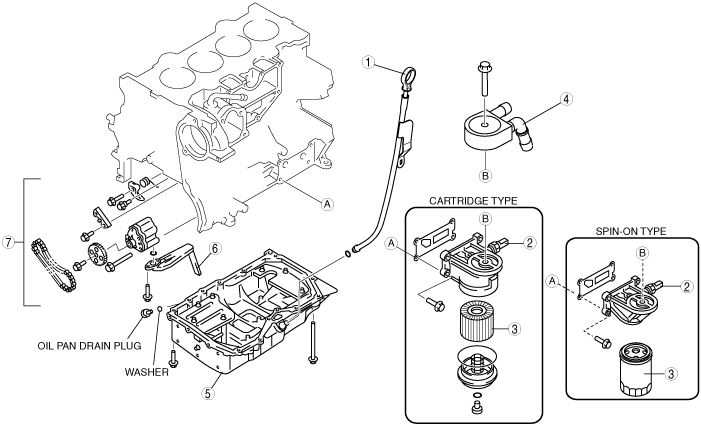

LUBRICATION SYSTEM LOCATION INDEX [L3 Turbo]

id0111b4800100

acxaaw00000510

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [L3 Turbo].) (See ENGINE OIL REPLACEMENT [L3 Turbo].)
2	Oil pressure switch (See OIL PRESSURE INSPECTION [L3 Turbo].)
3	Oil filter (See ENGINE OIL REPLACEMENT [L3 Turbo].)
4	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [L3 Turbo].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [L3 Turbo].)
6	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [L3 Turbo].)
7	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [L3 Turbo].)
