COOLING FAN COMPONENT REMOVAL/INSTALLATION [L3 Turbo]

id0112b3801600

Warning

•  Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

1.  Disconnect the negative battery cable.

2.  Remove the under cover.

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [L3 Turbo].)

4.  Remove the charge air cooler duct, air cleaner and fresh air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

5.  Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [L3 Turbo].)

6.  Remove the dipstick pipe. (See OIL PAN REMOVAL/INSTALLATION [L3 Turbo].)

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

9.  Refill the engine coolant. (See OIL PAN REMOVAL/INSTALLATION [L3 Turbo].)

10.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [L3 Turbo].)

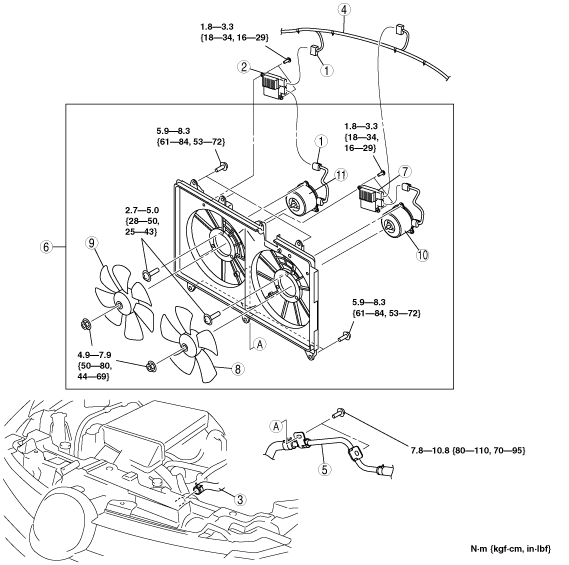

acxuuw00002074

1	Fan control module connectors
2	Fan control module No.2
3	Upper radiator hose
4	Wiring harness
5	ATF oil cooler pipe (See ATF Oil Cooler Pipe Removal Note.)
6	Cooling fan component (See Cooling Fan Component Removal Note.)
7	Fan control module No.1
8	Cooling fan No.1
9	Cooling fan No.2
10	Cooling fan motor No.1
11	Cooling fan motor No.2

ATF Oil Cooler Pipe Removal Note

1.  Remove the ATF oil cooler pipe with the hoses still connected. Position the ATF oil cooler pipe so that it is out of the way.

Cooling Fan Component Removal Note

1.  Remove the cooling fan component from above the engine compartment.
