AIR BYPASS VALVE INSPECTION [L3 Turbo]

id0113b5800500

1. Remove the charge air cooler duct.

2. Remove the air bypass valve. (SeeINTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

3. Connect the vacuum pump to the vacuum ports of the air bypass valve.

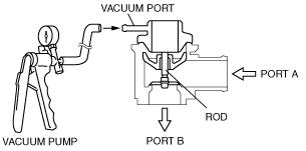

acxaaw00000899

4. Verify that the airflow is as indicated in the table.

• If there is any malfunction, replace the air bypass valve.

Vacuum

(kPa {mmHg, inHg})

Valve operation condition

Airflow between port A—B

–66 {–496, –20}

or more

Open

Yes

–49 {–367, –14}

or less

Closed

No

Vacuum (kPa {mmHg, inHg})	Valve operation condition	Airflow between port A—B
–66 {–496, –20} or more	Open	Yes
–49 {–367, –14} or less	Closed	No

Approx. value

acxaaw00000900
