EMISSION SYSTEM LOCATION INDEX [L3 Turbo]

id0116b4800100

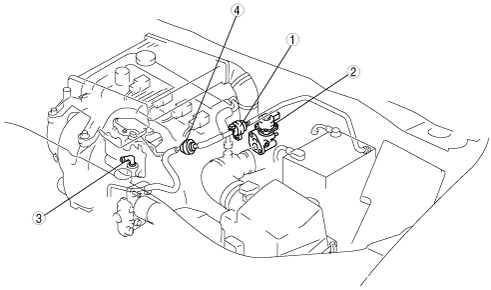

Engine Compartment Side

acxuuw00000176

1	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [L3 Turbo].) (See PURGE SOLENOID VALVE INSPECTION [L3 Turbo])
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [L3 Turbo].) (See EGR VALVE INSPECTION [L3 Turbo].)
3	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [L3 Turbo].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [L3 Turbo].)
4	Check valve (See CHECK VALVE INSPECTION [L3 Turbo].)

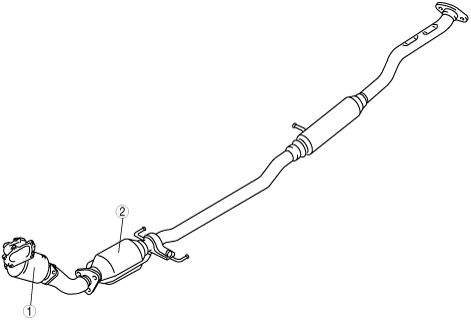

Exhaust system side

acxuuw00000177

1	WU-TWC
2	TWC

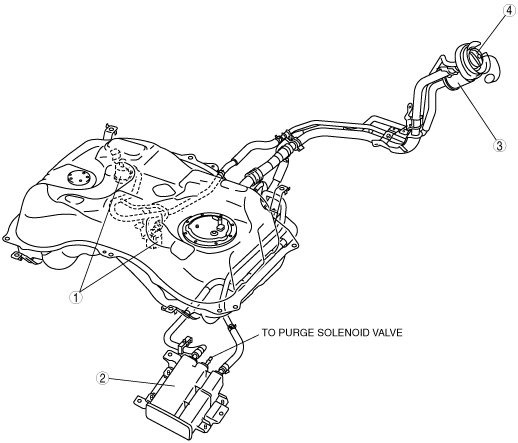

Fuel Tank Side

acxaaw00000133

1	Rollover valve
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [L3 Turbo].) (See CHARCOAL CANISTER INSPECTION [L3 Turbo].)
3	Air filter (See AIR FILTER INSPECTION [L3 Turbo].)
4	Fuel filler cap
