MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR CONSTRUCTION/OPERATION [L3 Turbo]
id0140b6173100
• The MAP sensor is built into the boost air temperature sensor.

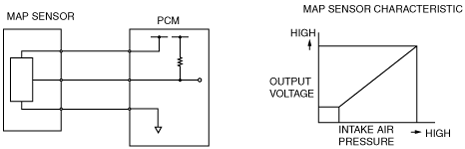

• When pressure is applied to the piezoelectric element in the sensor, an electric potential difference occurs. Output voltage increases as the intake air pressure increases.
