FRONT WHEEL ALIGNMENT

id021100800200

Front wheel alignment (Unloaded)*1

Item

Fuel gauge indication

Empty

1/4

1/2

3/4

Full
Maximum steering angle
[Tolerance ±3°]
Inner
36°06′
Outer
30°54′
Total toe-in
[Tolerance ±4 {±0.16}]
(mm {in})
0 {0.00}
(degree)
0°00′±0°18′
Caster angle*2[Tolerance ±1°]
2°47′
2°50′
2°53′
2°55′
2°57′
Camber angle*2[Tolerance ±1°]
−0°19′
−0°20′
Steering axis inclination (Reference value)
11°42′
11°43′
11°44′

*1  :Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2  :Difference between left and right must not exceed 1°30′.
Note
Total toe-in measuring position
•  Tire: A indicated in the figure (between the center of the tires)
acxuuw00000347
•  Rim inner: B indicated in the figure (between the inner side of the rims)

Steering Angle Adjustment

1.  Jack up the front of the vehicle and support it on safety stands.

2.  Loosen the locknut of the tie-rod end.

3.  Remove the rack boot clamp.

4.  Rotate the tie rod and adjust the steering angle.

Note
•  The travel distance of the right and left tie rods should be the same.

5.  Rotate the tie rod and adjust so that the length L shown in the figure is within the specification.

acxuuw00000348

Dimension L (reference value)
9.5—23.5 mm {0.38—0.92 in}
Difference between left and right
3 mm {0.12 in} or less

6.  Tighten the locknut of the tie-rod end.

Tightening torque
68.6—98.0 N·m {7.00—9.99 kgf·m, 50.6—72.2 ft·lbf}

7.  Correct the rack boot twists.

8.  Install and fix the rack boot clamp.

9.  After adjusting the steering angle, always inspect and adjust the toe angle.


Camber and Caster Adjustment

1.  Remove the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

3.  Jack up the front of the vehicle and support it on safety stands.

4.  Remove the mounting rubber nuts.

acxuuw00002203

5.  Push the shock absorber and coil spring component downward, and turn the direction indicator to the desired position.

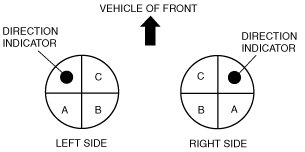

acxuuw00001947

Adjustment value from original position

Direction indicator position

Camber angle

Caster angle
A
0°
-0°22′
B
+0°22′
-0°22′
C
+0°22′
0°

6.  Install the shock absorber and coil spring, then tighten the mounting rubber nuts to the specified torque.

Tightening torque
46.1—62.7 N·m {4.71—6.39 kgf·m, 34.1—46.2 ft·lbf}

7.  Install the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

8.  Install the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)


Total Toe-in Adjustment

1.  Jack up the front of the vehicle and support it on safety stands.

2.  Loosen the locknut of the tie-rod end.

3.  Remove the rack boot clamp.

4.  Adjust the total toe-in by rotating each tie rod (left and right) in the opposite directions by the same amount respectively.

Note
•  Toe angle changes by approx. 6 mm {0.2 in} per one rotation of the tie rod for one wheel.
•  Each tie rod has a right-hand thread. When increasing the toe-in angle, rotate the right tie rod toward the front of the vehicle and rotate the left tie rod toward the rear of the vehicle by the same amount.

5.  Tighten the locknut of the tie-rod end.

Tightening torque
68.6—98.0 N·m {7.00—9.99 kgf·m, 50.6—72.2 ft·lbf}

6.  Verify that the rack boot does not have any twisting and install the rack boot clamp.
