JOINT SHAFT DISASSEMBLY [4WD]
id0313008010a4

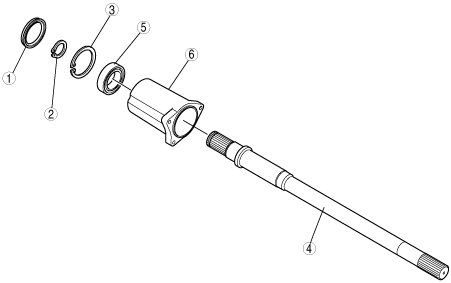

1. Disassemble in the order indicated in the table.
acxuuw00001353
|
|
1
|
Dust seal
|
|
2
|
Clip
|
|
3
|
Snap ring
|
|
4
|
Joint shaft
|
|
5
|
Bearing
(See Bearing Disassembly Note)
|
|
6
|
Bearing housing
|
Dust Seal Disassembly Note
1. Remove the dust seal using a flathead screwdriver.
Bearing Disassembly Note
1. Remove the bearing from the joint shaft using a press.
