JOINT SHAFT ASSEMBLY [4WD]

id0313008011a4

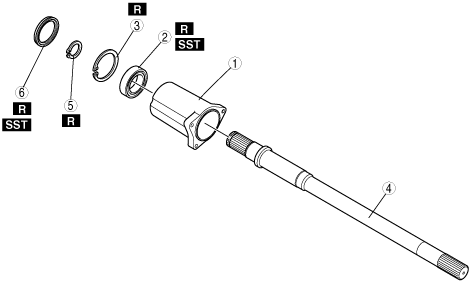

1.  Assemble in the order indicated in the table.

acxaaw00000440

1	Bearing housing
2	Bearing (See Bearing Assembly Note)
3	Snap ring
4	Joint shaft (See Joint Shaft Assembly Note)
5	Clip
6	Dust seal (See Dust Seal Assembly Note)

Bearing Assembly Note

1.  Install the new bearing to the bracket.

Note

•  When the bearing is not installed to the bracket by hand, install it using the SST.

acxaaw00000441

Joint Shaft Assembly Note

1.  Install the joint shaft using a press and the SST.

acxaaw00000442

Dust Seal Assembly Note

1.  Apply grease to the new dust seal lip.

2.  Install the new dust seal using a press and the SSTs.

acxaaw00000443
