MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D. (ATX)]

id041100801341

1.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See AIR BLEEDING.)

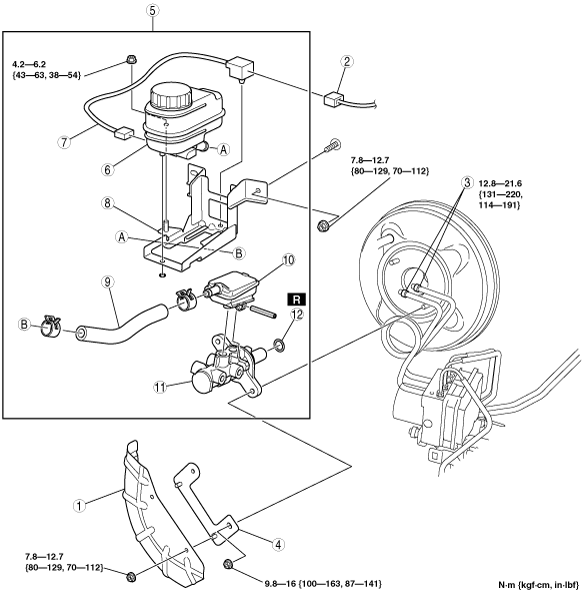

acxaaw00001318

1	Insulator
2	Brake fluid level sensor connector
3	Brake pipe
4	Insulator bracket
5	Master cylinder component
6	No.1 reserve tank
7	Brake fluid level sensor short cord
8	Reserve tank bracket
9	Reserve tank hose
10	No.2 reserve tank
11	Master cylinder
12	O-ring
