MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D. (ATX)]

id041100801343

1.  Remove the charge air cooler duct.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See AIR BLEEDING.)

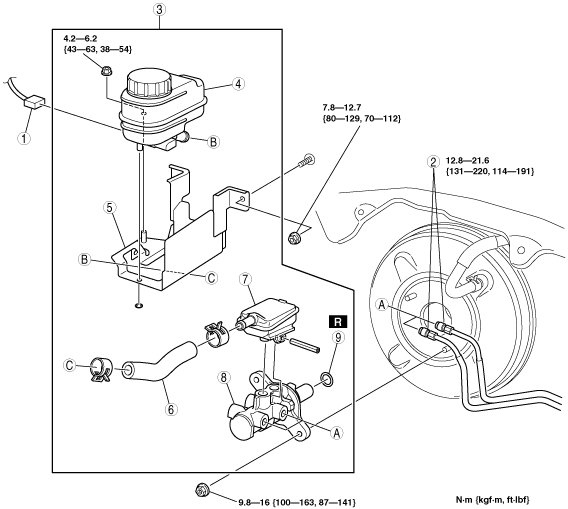

acxaaw00000390

1	Brake fluid level sensor connector
2	Brake pipe
3	Master cylinder component
4	No.1 reserve tank
5	Reserve tank bracket
6	Reserve tank hose
7	No.2 reserve tank
8	Master cylinder
9	O-ring
