REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4WD]

id0415008001a5

1.  Remove the rear seat cushion.

2.  Remove in the order indicated in the table.

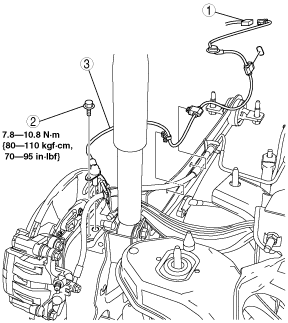

acxuuw00001877

1	Rear ABS wheel-speed sensor connector
2	Bolt
3	Rear ABS wheel-speed sensor

3.  Install in the reverse order of removal.
