FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041500800300

1.  Perform the following procedure and remove the LF ABS wheel-speed sensor.

(1)  Remove the battery and battery tray.

(2)  Remove the air cleaner component and air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

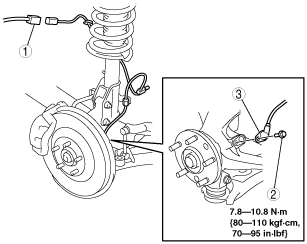

2.  Remove in the order indicated in the table.

acxuuw00001205

1	Front ABS wheel-speed sensor connector
2	Bolt
3	Front ABS wheel-speed sensor

3.  Install in the reverse order of removal.
