TCS OFF SWITCH REMOVAL/INSTALLATION
id041500803000
1. Remove the dashboard under cover.

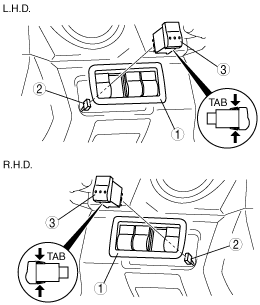

2. Remove in the order indicated in the table.
acxaaw00001346
|
|
1
|
Switch bezel component
|
|
2
|
TCS OFF switch connector
|
|
3
|
TCS OFF switch
|
3. Install in the reverse order of removal.
Switch Bezel Component Removal Note
1. Access the switch bezel component from behind of the dashboard, and squeeze the tabs of the switch bezel component.
2. Remove the switch bezel component from the dashboard.
