FOREWORD [AW6A-EL, AW6AX-EL]

id050211800200

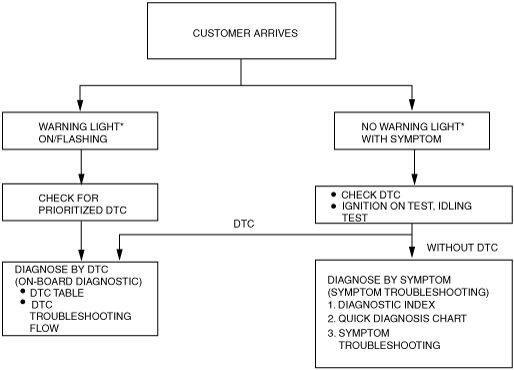

• When the customer reports vehicle malfunction, check the malfunction indicator lamp (MIL) indication, AT warning indication, and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.

― If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE [AW6A-EL, AW6AX-EL].)

― If a DTC does not exist and the MIL and AT warning lights do not illuminate, diagnose the applicable symptom troubleshooting. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [AW6A-EL, AW6AX-EL].)

acxaaw00000262

*: Malfunction Indicator Lamp (MIL), AT warning light
