CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION

id051000801400

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Battery, battery tray (L.H.D.) (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)
(2)  Engine cover
(3)  Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo])
(4)  Charge air cooler (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)
(5)  Cowl panel (R.H.D.) (See COWL PANEL REMOVAL/INSTALLATION.)

3.  Remove the insulator. (R.H.D.)

acxaaw00000969

4.  Remove the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION.)

5.  Remove in the order indicated in the table.

6.  Plug the clutch pipe after removing it to avoid leakage.

7.  Install in the reverse order of removal.

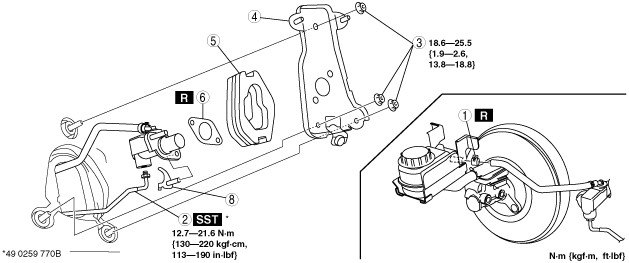

L.H.D.

acxaaw00001285

1
Clip
2
Clutch pipe
3
Nut
4
Clutch pedal bracket No.2
5
Polyurethane foam
6
Gasket
7
Clutch master cylinder
8
Clutch master cylinder bracket

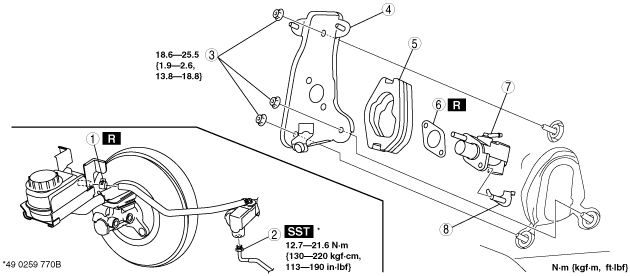

R.H.D.

acxaaw00001286

1
Clip
2
Clutch pipe
3
Nut
4
Clutch pedal bracket No.2
5
Polyurethane foam
6
Gasket
7
Clutch master cylinder
8
Clutch master cylinder bracket
