SHIFT INTERLOCK MECHANISM OPERATION [A26MX-R]


id051521101400

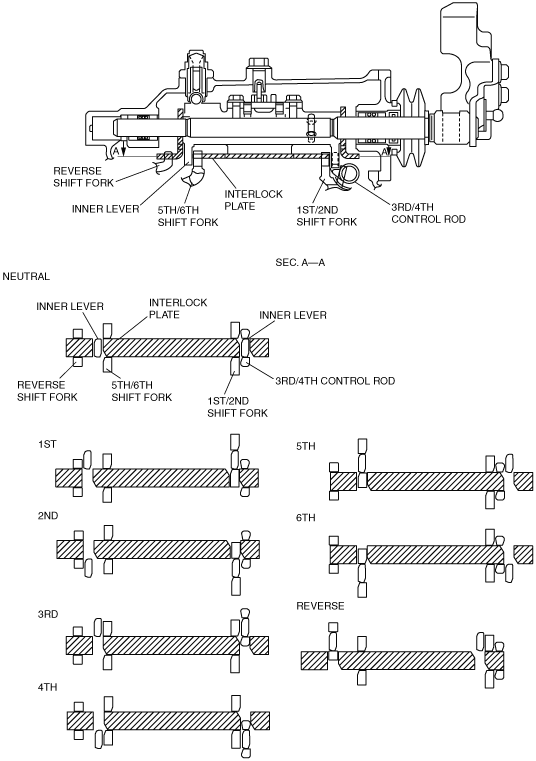

•  During shifting, the shift forks and control rod, except for the one in operation, are locked in the neutral position by the interlock plate.
acxaan00000254
