AIR FILTER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0711a1800700

Caution

•  If the air conditioner is used or the vehicle is driven with the air filter removed, snow or foreign material can penetrate the blower motor, causing motor lock or damage. As a result, low visibility due to window fogging or air conditioner malfunction could occur. Do not use the air conditioner or drive the vehicle with the air filter removed.

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

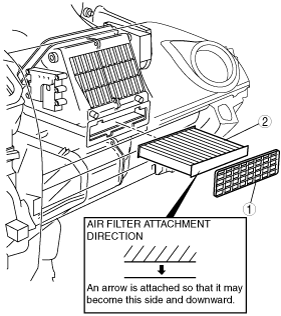

L.H.D.

acxuuw00000705

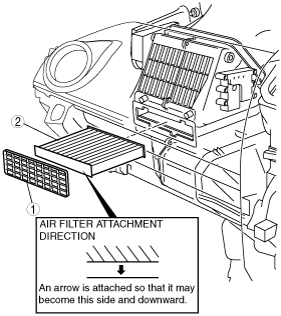

R.H.D.

acxaaw00000562

1	Air filter cover
2	Air filter

3.  Install in the reverse order of removal.
