AIRFLOW MODE CONTROL OPERATION [FULL-AUTO AIR CONDITIONER]

id0740a1102900


Airflow Mode Automatic Control

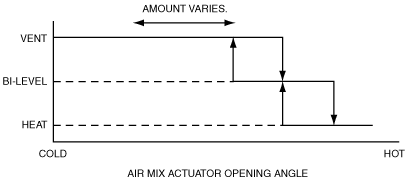

•  The climate control unit determines the airflow mode based on the current air mix actuator opening angle.
acxuun00000235

Correction

Engine coolant temperature correction (Warm-up correction)
•  Switches the airflow mode after the engine is started in winter in accordance with the increase in engine coolant temperature to prevent discomfort caused by cold air blown towards the feet. The engine coolant temperature correction is performed only when the cabin temperature is 13 °C {55 °F} or less, or the cabin temperature is 23 °C {73 °F} or less and sunlight intensity is relatively low.
acxuun00000236

Airflow Mode Manual Control

•  The airflow modes can be switched by operating the each mode switches.

Airflow mode

Switch operated

Air vent
VENT
MODE switch
CENTER VENT, SIDE VENT, FRONT HEAT (low volume), REAR HEAT (low volume)
BI-LEVEL
CENTER VENT, SIDE VENT, FRONT HEAT, REAR HEAT
HEAT
SIDE VENT (L.H.D. only), FRONT HEAT, REAR HEAT, SIDE DEMISTER (low volume), DEFROSTER (low volume)
HEAT/DEF
SIDE VENT (L.H.D. only), FRONT HEAT, REAR HEAT, SIDE DEMISTER, DEFROSTER
DEFROSTER
DEFROSTER switch
SIDE VENT (L.H.D. only), SIDE DEMISTER, DEFROSTER
