AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1801400

1.  Disconnect the negative battery cable.

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

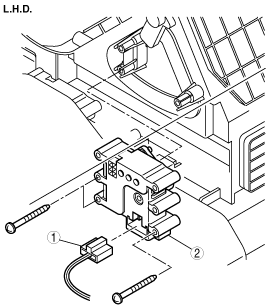

acxaaw00000828

acxaaw00000829

1	Air intake actuator connector
2	Air intake actuator

4.  Install in the reverse order of removal.
