AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1803200

1.  Disconnect the negative battery cable.

2.  Remove the front bumper.

3.  Remove in the order indicated in the table.

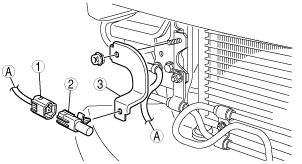

MTX

acxaaw00000852

1	Ambient temperature sensor connector
2	Ambient temperature sensor
3	Bracket

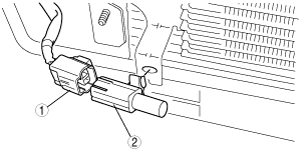

ATX

acxuuw00000746

1	Ambient temperature sensor connector
2	Ambient temperature sensor

4.  Install in the reverse order of removal.
