• If not as specified, replace the fan switch.
acxuuw00001888
|
acxuuw00001889
|
FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]
id0740a2801300
1. Remove the climate control unit.

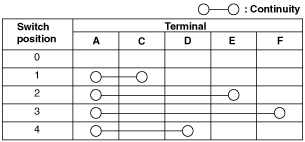

2. Inspect for continuity between the fan switch terminals using an ohmmeter.
acxuuw00001888
|
acxuuw00001889
|
