AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

id0740a2801600

1.  Disconnect the negative battery cable.

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

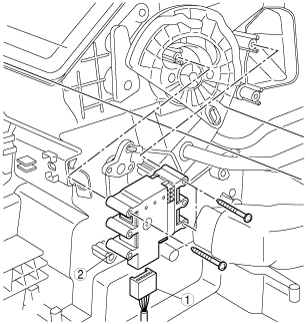

acxaaw00000602

1	Airflow mode actuator connector
2	Airflow mode actuator

4.  Install in the reverse order of removal.
