REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER]

id0740a2802700

1.  Install the manifold gauge.

2.  Disconnect the refrigerant pressure switch connector.

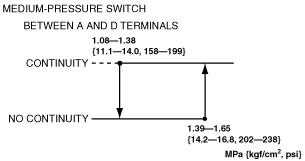

3.  Verify the high‐pressure side reading of the manifold gauge and continuity between the terminals of the refrigerant pressure switch.

•  If the continuity is not normal, replace the refrigerant pressure switch.

a6e8540w053

e6u740zwb105

chu0740w024
