REAR BUMPER DISASSEMBLY/ASSEMBLY
id091000800800
1. Remove the rear fog light. (Vehicles with rear fog lights) (See REAR FOG LIGHT REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.
acxaaw00000995
|
|
1
|
Locator pin
|
|
2
|
Screw A
|
|
3
|
Rear reflector
(See Reflector Removal Note)
|
|
4
|
Bumper guard
|
|
5
|
Screw B
|
|
6
|
Rivet
|
|
7
|
Bracket A
|
|
8
|
Bracket B
|
|
9
|
Rear fog light cover
|
|
10
|
Rear bumper fascia
|
3. Assemble in the reverse order of disassembly.
Reflector Removal Note

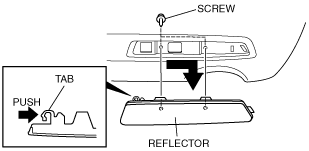

1. Remove the screw.
acxuuw00001314
|
2. Pull off the reflector from the rear bumper in the direction shown by the arrow.
