POWER OUTER MIRROR SWITCH INSPECTION

id091200802400

L.H.D.

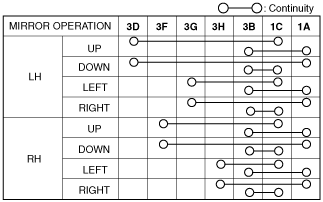

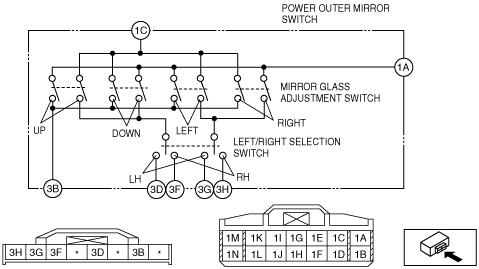

1.  Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.

•  If not as indicated in the table, replace the power outer mirror switch.

acxaaw00001323

acxaaw00001324

R.H.D.

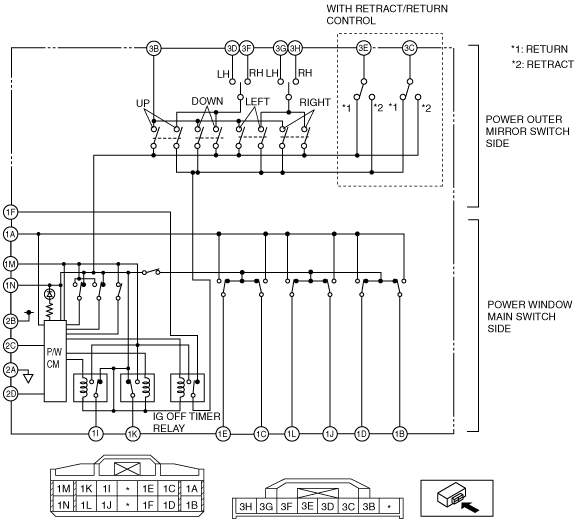

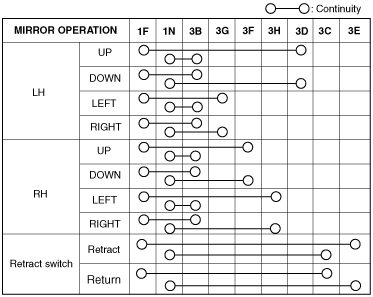

1.  Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.

•  If not as indicated in the table, replace the power outer mirror switch.

acxaaw00000524

acxaaw00000525
