FRONT SEAT REMOVAL/INSTALLATION

id091300800200

Warning

•  Handling the front seats improperly can accidentally deploy the side air bag, which may seriously injure you. Read air bag system service warnings and cautions before handling the front seats. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Turn the ignition switch to the LOCK position.

2.  Disconnect the negative battery cable and wait for more than 1 minute.

3.  Remove in the order indicated in the table.

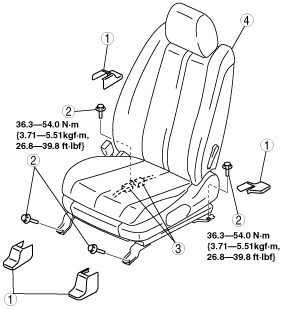

L.H.D.

acxaaw00001249

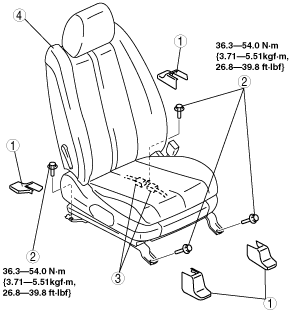

R.H.D.

acxaaw00001250

1	Cover
2	Bolt
3	Connector
4	Front seat

4.  Install in the reverse order of removal.
