REAR SEAT DISASSEMBLY/ASSEMBLY
id091300800500

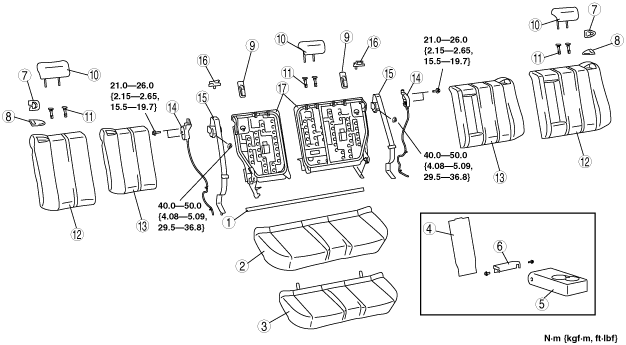

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
acxaaw00001247
|
|
1
|
Plate
|
|
2
|
Seat cushion trim
|
|
3
|
Seat cushion pad
|
|
4
|
Armrest board
|
|
5
|
Armrest
|
|
6
|
Armrest hinge
|
|
7
|
Seat back catch cover
|
|
8
|
Remote button cover
|
|
9
|
Child seat anchor cover
|
|
10
|
Headrest
|
|
11
|
Pole guide
|
|
12
|
Seat back trim
|
|
13
|
Seat back pad
|
|
14
|
Seat back catch
|
|
15
|
Rear seat belt
|
|
16
|
Seat belt guide
|
|
17
|
Seat back frame
|

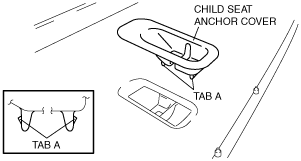

Child seat anchor cover disassembly note
1. Remove tab A, then remove the child seat anchor cover.
acxaaw00000039
|
